Direct activate XRv9k Smart License

Config call-home that active smart license

xrv9k should have some default call-home, in some scenario, need to add some extra configuration, as follow:

domain name cisco.com
domain name-server x.x.x.x  >>> dns server
call-home
 service active
 contact smart-licensing
 http-proxy y.y.y.y port 80  >>> proxy server
 profile CiscoTAC-1
  active
  destination transport-method http
 !
!

Add crypto config

conf
crypto ca trustpool policy crl optional
commit

Manage License and Smart account

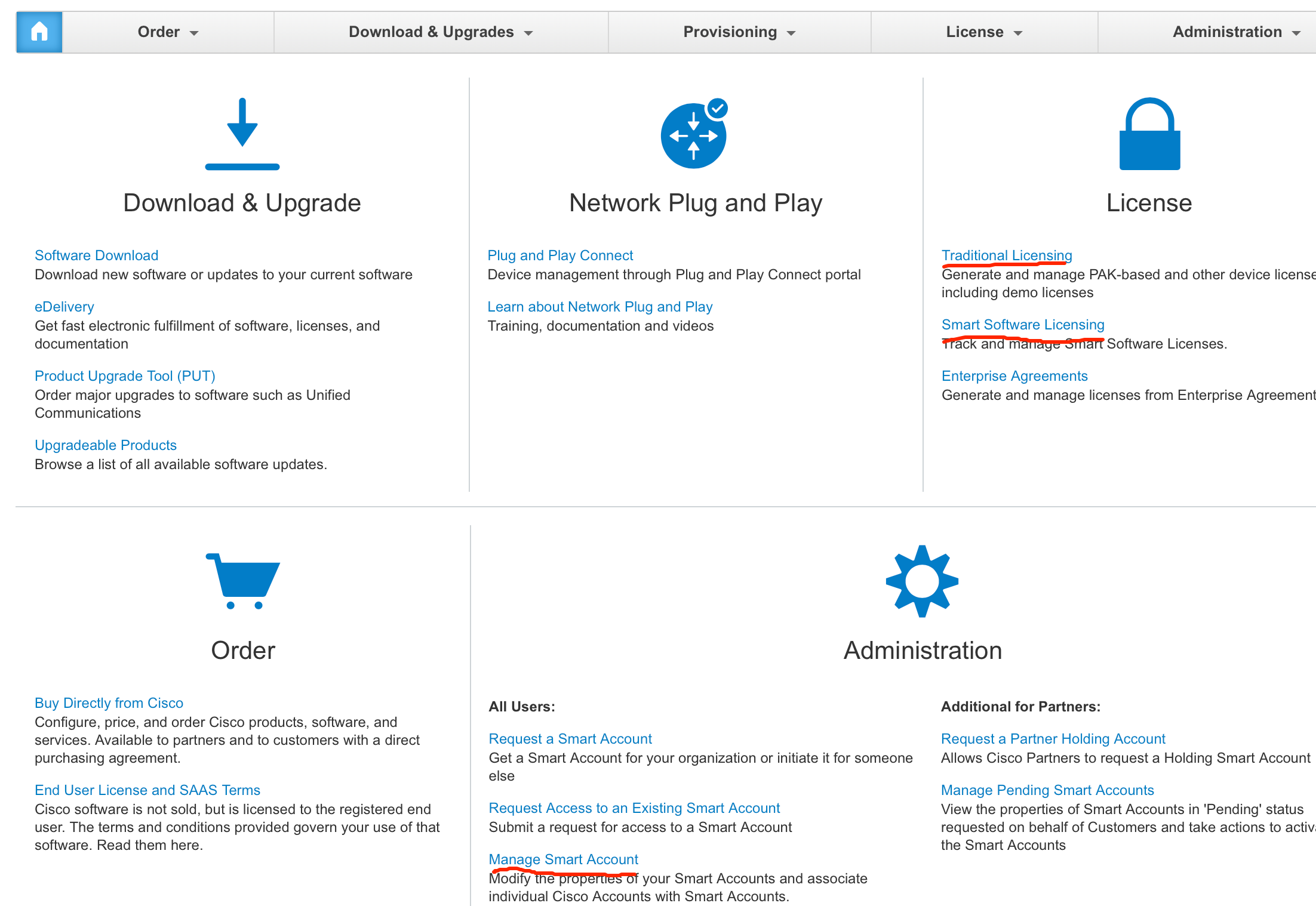

Login to Cisco Software Central

If need to manage license, you can check License part; If need to manage Smart account and virtual account, check Administration part.

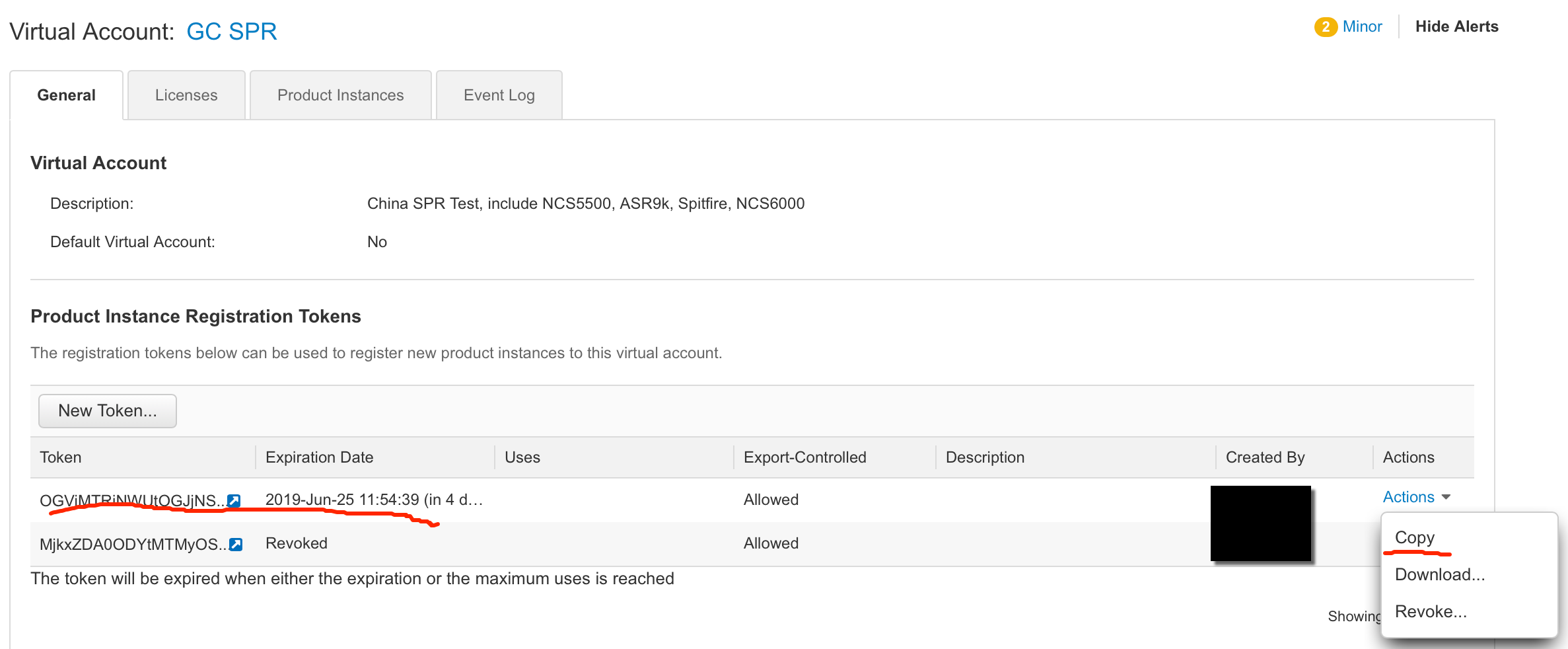

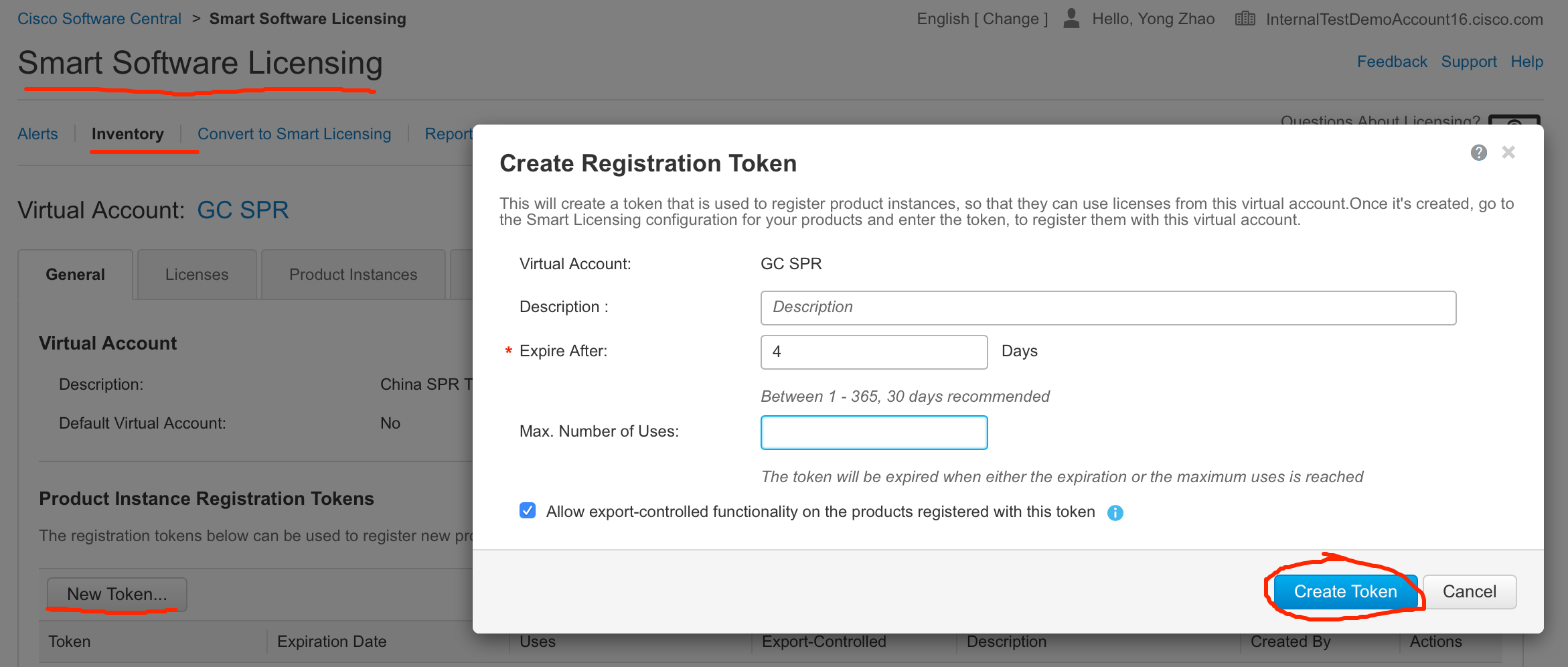

Create Token in License part

After book license by smart license, you will found have licese info in your smart account, then create the token in “Inventory”:

Activate license at XRv9k

Activate by “license smart register idtoken”

RP/0/RP0/CPU0:ios#license smart register idtoken OGViMTRiNWUtO...
Fri Jun 21 12:08:50.243 UTC

License command "license smart register idtoken " completed successfully.
Registration process is in progress. Use the 'show license status' command to check the progress and result

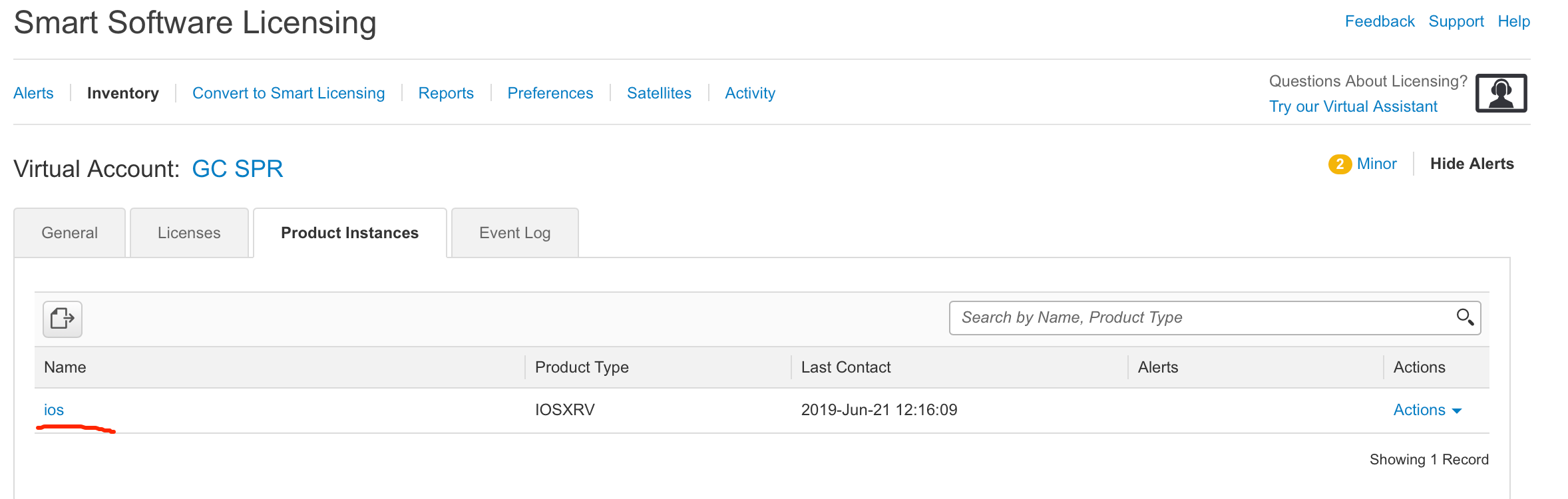

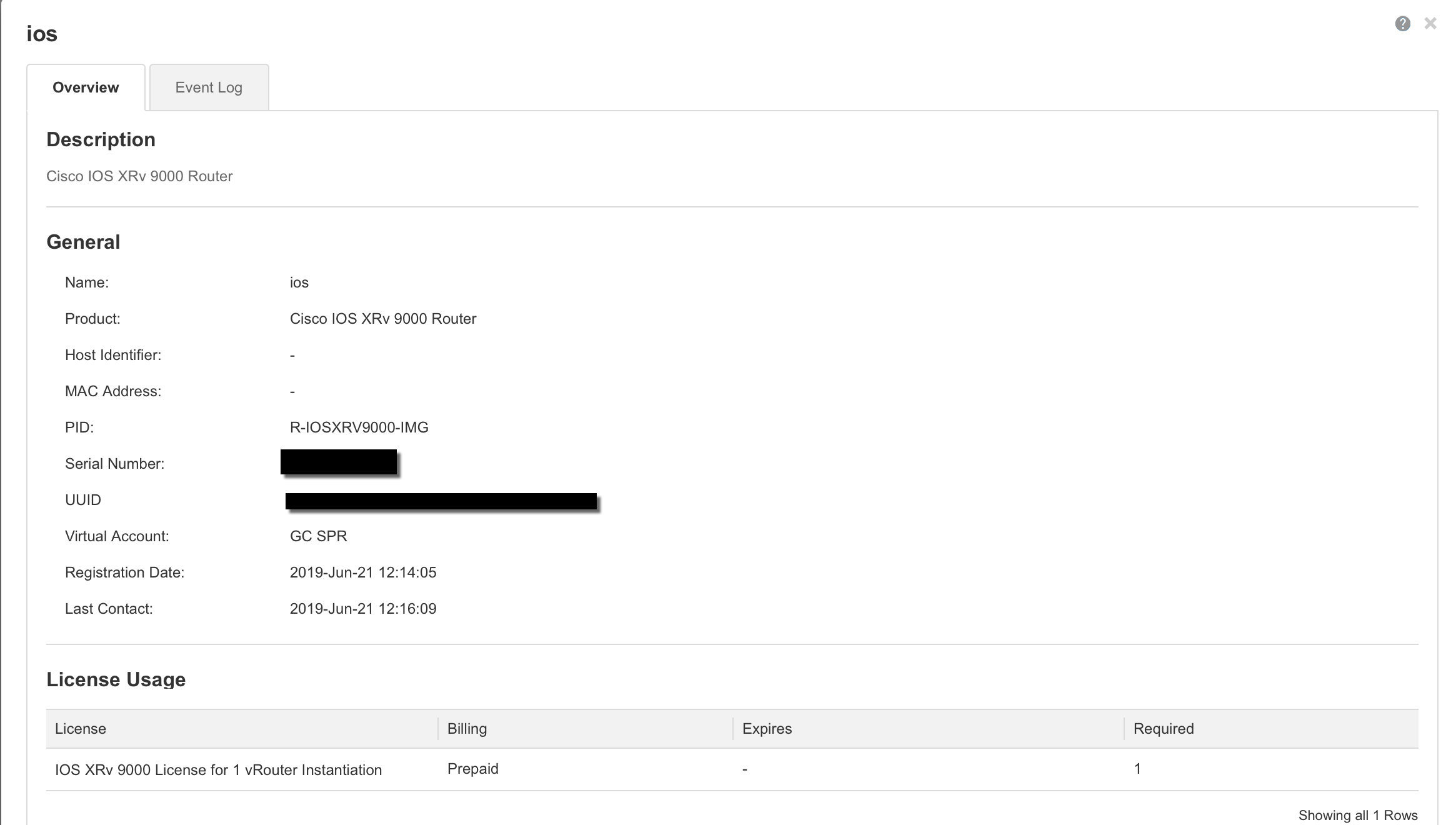

Checked information

RP/0/RP0/CPU0:ios#show license all
Fri Jun 21 12:16:55.077 UTC

Smart Licensing Status
======================

Smart Licensing is ENABLED

Registration:
  Status: REGISTERED
  Smart Account: <xxx>
  Virtual Account: GC SPR
  Initial Registration: SUCCEEDED on Fri Jun 21 2019 12:14:11 UTC <<<
  Last Renewal Attempt: None
  Next Renewal Attempt: Wed Dec 18 2019 12:14:14 UTC
  Registration Expires: Sat Jun 20 2020 12:09:07 UTC

License Authorization:
  Status: AUTHORIZED on Fri Jun 21 2019 12:16:08 UTC
  Last Communication Attempt: SUCCEEDED on Fri Jun 21 2019 12:16:08 UTC
  Next Communication Attempt: Sun Jul 21 2019 12:16:07 UTC
  Communication Deadline: Thu Sep 19 2019 12:11:08 UTC

License Usage
==============

IOS XRv 9000 License for 1 vRouter Instantiation (IOS-XRv-9000-vRouter-VM):
  Description: IOS XRv 9000 License for 1 vRouter Instantiation
  Count: 1
  Version: 1.0
  Status: AUTHORIZED

Product Information
===================
UDI: PID:R-IOSXRV9000-IMG,SN:5532C297A71,SUVI:R-IOSXRV9000-IMG5532C297A71,UUID:xxx

Agent Version
=============
Smart Agent for Licensing: 2.2.0_rel/48

RP/0/RP0/CPU0:ios#
RP/0/RP0/CPU0:ios#show license platform summary
Fri Jun 21 12:21:17.271 UTC
Current state:    REGISTERED

Collection: LAST: Fri Jun 21 2019 12:20:31 UTC
            NEXT: Fri Jun 21 2019 13:20:31 UTC
Reporting:  LAST: Fri Jun 21 2019 12:20:31 UTC
            NEXT: Sat Jun 22 2019 12:20:31 UTC

                                                                   Count
Feature/Area     Entitlement                                     Last Next
================ =============================================== ==== ====
System           Product: Right to Use                              1    0

RP/0/RP0/CPU0:ios#sh license platform detail
Fri Jun 21 12:23:37.197 UTC
Current state:    REGISTERED

Collection: LAST: Fri Jun 21 2019 12:20:31 UTC
            NEXT: Fri Jun 21 2019 13:20:31 UTC
Reporting:  LAST: Fri Jun 21 2019 12:20:31 UTC
            NEXT: Sat Jun 22 2019 12:20:31 UTC

Parameters: Collection interval:          60 minute(s)
            Reporting  interval:        1440 minute(s)
            Throughput gauge:        1000000 Kbps <<<

=================================================
Feature/Area 'system'
   Name:  System
   Status:   ACTIVE
   Flags: CONFIG THROUGHPUT

   [ 1] Name:  Product: Right to Use
        Entitlement Tag: regid.2015-04.com.cisco.IOS-XRv-9000-vRouter-VM,1.0_fac302ad-69a9-40f3-90e3-8a9cd4092852
        Count: Last reported:    1
               Next report:      0
   [ 2] Name:  Foundation: IP/MPLS Basic (per 1 Gbps)
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-vRouter-IPMPLS-Base-1G,1.0_15eacc5f-5e75-47e5-bc3d-283f95cc90bb
        Count: Last reported:    0
               Next report:      0
   [ 3] Name:  Foundation: IP/MPLS Premium (per 1 Gbps)
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-vRouter-IPMPLS-Premium-1G,1.0_1c90de6f-40fa-4191-9478-c004444888c6
        Count: Last reported:    0
               Next report:      0
   [ 4] Name:  Foundation: IP/MPLS/L3VPN Basic (per 1 Gbps)
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-vRouter-IPMPLSL3VPN-Base-1G,1.0_93be46c0-06ec-429b-8792-07cca91719f2
        Count: Last reported:    0
               Next report:      0
   [ 5] Name:  Foundation: IP/MPLS/L3VPN Premium (per 1 Gbps)
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-vRouter-IPMPLSL3VPN-Premium-1G,1.0_30e1d81d-ebbb-4acd-aad2-4369dd177293
        Count: Last reported:    0
               Next report:      0
   [ 6] Name:  Feature: BGP Scale up to 4M
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-Route-Scale-T1,1.0_a17c279a-555f-4f91-9894-c260415aa45c
        Count: Last reported:    0
               Next report:      0
   [ 7] Name:  Feature: BGP Scale up to 10M
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-Route-Scale-T2,1.0_b99ecdc3-7ec8-475d-a273-05085c2ce753
        Count: Last reported:    0
               Next report:      0
   [ 8] Name:  Feature: BGP Scale unlimited
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-Route-Scale-T3,1.0_7d8c817f-39ca-4f11-855e-0aa43f1d6634
        Count: Last reported:    0
               Next report:      0
   [ 9] Name:  Feature: Lawful Intercept
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-vRouter-LI-RTU,1.0_883adb83-423d-4f57-a3f2-8709e73c7b40
        Count: Last reported:    0
               Next report:      0
   [10] Name:  Feature: QoS (per 1Gbps)
        Entitlement Tag: regid.2015-05.com.cisco.IOS-XRv-9000-vRouter-QoS-1G,1.0_5c2c4fa7-f61c-420e-9cfb-d556adaf90fd
        Count: Last reported:    0
               Next report:      0
   [11] Name:  Feature: LMA (8K bindings)
        Entitlement Tag: regid.2017-06.com.cisco.S-XR-SESSION-8K,1.0_f45c5ad8-5341-4d8b-ad28-fcc1ef0f548d
        Count: Last reported:    0
               Next report:      0
   [12] Name:  Feature: BNG (8000 Subscriber Sessions)
        Entitlement Tag: regid.2014-06.com.cisco.A9K-BNG-LIC-8K,1.0_6af262eb-cbb6-4bf6-8581-5a4164d99661
        Count: Last reported:    0
               Next report:      0
   [13] Name:  Feature: BNG Advanced (8000 Subscriber Sessions)
        Entitlement Tag: regid.2015-03.com.cisco.A9K-BNG-ADV-8K,1.0_653b7032-1b8b-4371-a097-893cf2e42302
        Count: Last reported:    0
               Next report:      0

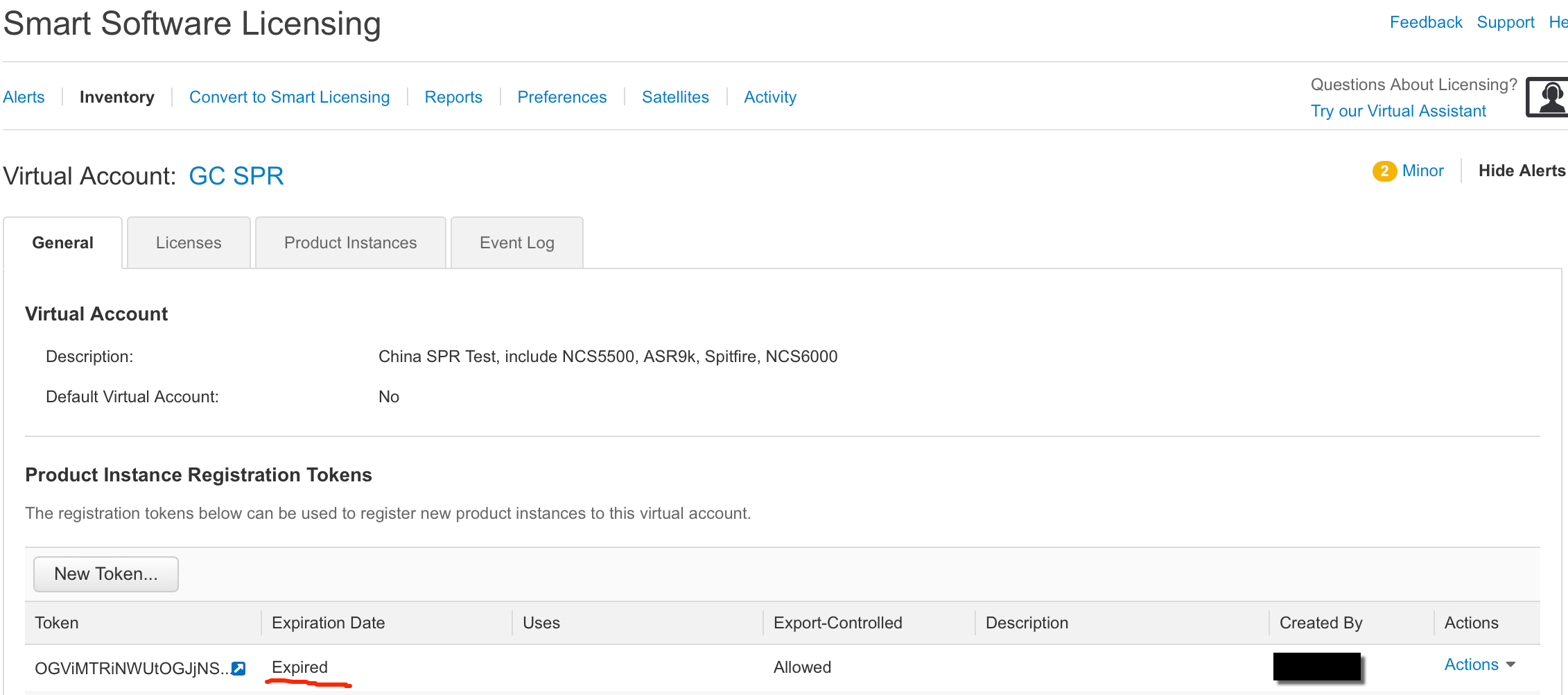

Token Expired no any business effective

For the token only be used during registration, in order word, combin smart license and platform. It is not required to maintain registration. An expired token will have no effect on your registration. As follow example that token expired, license is ok. So license expired notification only for license, not for token.

RP/0/RP0/CPU0:iosxrv-2#sh int gi0/0/0/2 | i 30 s
Tue Jun 25 12:53:38.896 UTC
  30 second input rate 3000 bits/sec, 3 packets/sec
  30 second output rate 683000 bits/sec, 90 packets/sec. <<< if license not activate, 200k
RP/0/RP0/CPU0:iosxrv-2#
RP/0/RP0/CPU0:iosxrv-2#show license summar
Tue Jun 25 12:53:50.668 UTC

Smart Licensing is ENABLED

Registration:
  Status: REGISTERED
  Smart Account: InternalTestDemoAccount16.cisco.com
  Virtual Account: GC SPR
  Last Renewal Attempt: None
  Next Renewal Attempt: Wed Dec 18 2019 12:14:13 UTC

License Authorization:
  Status: AUTHORIZED on Mon Jun 24 2019 14:47:52 UTC
  Last Communication Attempt: SUCCEEDED
  Next Communication Attempt: Wed Jul 24 2019 14:47:51 UTC

License Usage:
  License             Entitlement tag          Count  Status
  ---------------------------------------------------------------
  IOS XRv 9000 License for 1 vRouter Instantiation(IOS-XRv-9000-vRouter-VM)      1   AUTHORIZED
RP/0/RP0/CPU0:iosxrv-2#!
RP/0/RP0/CPU0:iosxrv-2#!
RP/0/RP0/CPU0:iosxrv-2#show license platform summary
Tue Jun 25 12:56:40.441 UTC
Current state:    REGISTERED

Collection: LAST: Tue Jun 25 2019 12:20:31 UTC
            NEXT: Tue Jun 25 2019 13:20:31 UTC
Reporting:  LAST: Tue Jun 25 2019 12:20:31 UTC
            NEXT: Wed Jun 26 2019 12:20:31 UTC

                                                                   Count
Feature/Area     Entitlement                                     Last Next
================ =============================================== ==== ====
System           Product: Right to Use                              1    0

RP/0/RP0/CPU0:iosxrv-2#show license platform detail
Tue Jun 25 12:56:49.345 UTC
Current state:    REGISTERED

Collection: LAST: Tue Jun 25 2019 12:20:31 UTC
            NEXT: Tue Jun 25 2019 13:20:31 UTC
Reporting:  LAST: Tue Jun 25 2019 12:20:31 UTC
            NEXT: Wed Jun 26 2019 12:20:31 UTC

Parameters: Collection interval:          60 minute(s)
            Reporting  interval:        1440 minute(s)
            Throughput gauge:        1000000 Kbps

=================================================
Feature/Area 'system'
   Name:  System
   Status:   ACTIVE
   Flags: CONFIG THROUGHPUT

   [ 1] Name:  Product: Right to Use
        Entitlement Tag: regid.2015-04.com.cisco.IOS-XRv-9000-vRouter-VM,1.0_fac302ad-xxx
        Count: Last reported:    1
               Next report:      0
 ......

RP/0/RP0/CPU0:iosxrv-2#
RP/0/RP0/CPU0:iosxrv-2#show license all
Tue Jun 25 12:57:33.849 UTC

Smart Licensing Status
======================

Smart Licensing is ENABLED

Registration:
  Status: REGISTERED
  Smart Account: InternalTestDemoAccount16.cisco.com
  Virtual Account: GC SPR
  Initial Registration: SUCCEEDED on Fri Jun 21 2019 12:14:11 UTC
  Last Renewal Attempt: None
  Next Renewal Attempt: Wed Dec 18 2019 12:14:14 UTC
  Registration Expires: Sat Jun 20 2020 12:09:07 UTC

License Authorization:
  Status: AUTHORIZED on Mon Jun 24 2019 14:47:52 UTC
  Last Communication Attempt: SUCCEEDED on Mon Jun 24 2019 14:47:52 UTC
  Next Communication Attempt: Wed Jul 24 2019 14:47:52 UTC
  Communication Deadline: Sun Sep 22 2019 14:42:53 UTC

License Usage
==============

IOS XRv 9000 License for 1 vRouter Instantiation (IOS-XRv-9000-vRouter-VM):
  Description: IOS XRv 9000 License for 1 vRouter Instantiation
  Count: 1
  Version: 1.0
  Status: AUTHORIZED

Product Information
===================
UDI: PID:R-IOSXRV9000-IMG,SN:5532C297A71,SUVI:R-IOSXRV9000-IMG5532C297A71,UUID:xxx

Agent Version
=============
Smart Agent for Licensing: 2.2.0_rel/48
