EVPN ELAN over SRTE

+1

在此篇文章里,简单总结下通过SRTE调度EVPN ELAN的流量,然后通过show信息,来查看引流及相关内容,并熟悉EVPN,EVPN基础部分,可以参考之前的文章,里面包含Route Type的信息:EVPN Summary

另外对于ELAN的引流,有很多种选择,常见的是通过对RT1打Color,调用单播流量;对RT3打Color,调用多播流量;对于RT1我们可以看成L3VPN中的“VRF”,也就是基于“VRF”颗粒度进行引流,这么理解可能更好理解

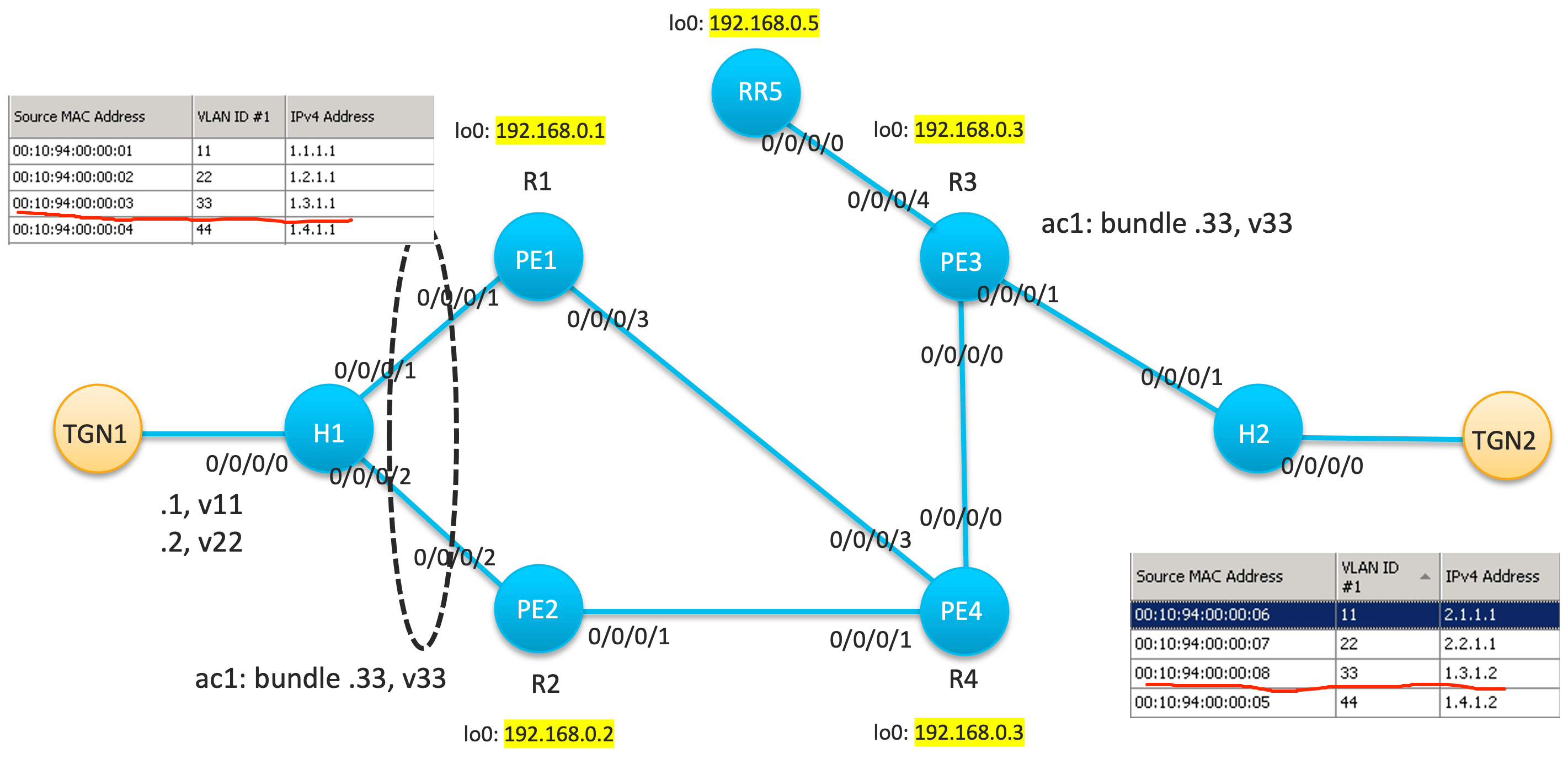

物理拓扑

在此拓扑中,PE1和PE2是 Multi-Homing, PE3是Single-Homing;此测试中主要覆盖下面场景,由于路径单一,所以我们从抓包信息中来看是否被引导到正确的SRTE中:

  1. PE1和PE2是Head-End,PE3是Tail-End,在PE1和PE2上用Explicit Path引流
  2. PE3是Head-End,PE1和PE2是Tail-End,在PE3上使用ODN的方式进行自动引流到PE1和PE2

场景1:PE1 和 PE2 是 Head-End

配置

ELAN配置同之前的文章,就不帖了,如果需要可以参考之前文章EVPN Summary,或者直接看后面的附件,里面有全配置,我只贴SRTE引流的配置;下面是PE1的配置:

extcommunity-set opaque color30
  30
end-set
!
route-policy evpn-color-in
  if evpn-route-type is 1 then
    set extcommunity color color30
  endif
  pass
end-policy
!
evpn
 evi 300
  bgp
   route-policy import evpn-color-in
  !
segment-routing
 traffic-eng
  segment-list elan-143
   index 10 mpls label 16004
   index 20 mpls label 16003
  !
  policy elan
   color 30 end-point ipv4 192.168.0.3
   candidate-paths
    preference 100
     explicit segment-list elan-143
     !

下面是PE2的配置:

extcommunity-set opaque color30
  30
end-set
!
route-policy evpn-color-in
  if evpn-route-type is 1 then
    set extcommunity color color30
  endif
  pass
end-policy
!
evpn
 evi 300
  bgp
   route-policy import evpn-color-in
  !
segment-routing
 traffic-eng
  segment-list elan-243
   index 10 mpls label 16004
   index 20 mpls label 16003
  !
  policy elan
   color 30 end-point ipv4 192.168.0.3
   candidate-paths
    preference 100
     explicit segment-list elan-243
     !

验证信息

在PE2上确认PE3发过来的路由以及SRTE相关信息(为什么看PE2的,因为我测试的地址会Hash到PE2上~):

RP/0/RSP0/CPU0:PE2#sh mpls for
Mon Feb  8 15:00:09.992 UTC
Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
16001  16001       SR Pfx (idx 1)     Hu0/0/0/1    24.1.1.4        0
16003  16003       SR Pfx (idx 3)     Hu0/0/0/1    24.1.1.4        60
16004  Pop         SR Pfx (idx 4)     Hu0/0/0/1    24.1.1.4        0
24000  Pop         SR Adj (idx 1)     Hu0/0/0/1    24.1.1.4        0
24001  Pop         SR Adj (idx 3)     Hu0/0/0/1    24.1.1.4        0
24002  Pop         EVPN:300 U         BD=0 E       point2point     106
24003  Pop         EVPN:300 M         BD=0 EIM     point2point     960
24005  Pop         No ID              Hu0/0/0/1    24.1.1.4        0
24006  16003       SR TE: 1 [TE-INT]  Hu0/0/0/1    24.1.1.4        106
24007  Pop         No ID              srte_c_30_ep point2point     102
24008  24000       EVPN:300                        point2point     0
24009  24000       EVPN:300                        192.168.0.1     0

RP/0/RSP0/CPU0:PE2#show segment-routing traffic-eng policy tabular
Mon Feb  8 15:00:48.979 UTC

 Color             Endpoint  Admin   Oper              Binding
                             State  State                  SID
------ -------------------- ------ ------ --------------------
    30          192.168.0.3     up     up                24007

RP/0/RSP0/CPU0:PE2#show segment-routing traffic-eng policy  color 30
Mon Feb  8 15:01:19.237 UTC

SR-TE policy database
---------------------

Color: 30, End-point: 192.168.0.3
  Name: srte_c_30_ep_192.168.0.3
  Status:
    Admin: up  Operational: up for 02:09:53 (since Feb  8 12:51:25.715)
  Candidate-paths:
    Preference: 100 (configuration) (active)
      Name: elan
      Requested BSID: dynamic
      Explicit: segment-list elan-243 (valid)
        Weight: 1, Metric Type: TE
          16004
          16003
  Attributes:
    Binding SID: 24007
    Forward Class: Not Configured
    Steering labeled-services disabled: no
    Steering BGP disabled: no
    IPv6 caps enable: yes
    Invalidation drop enabled: no

RP/0/RSP0/CPU0:PE2#show segment-routing  traffic-eng forwarding policy color 30
Mon Feb  8 15:02:12.255 UTC

SR-TE Policy Forwarding database
--------------------------------

Color: 30, End-point: 192.168.0.3
  Name: srte_c_30_ep_192.168.0.3
  Binding SID: 24007
  Active LSP:
    Candidate path:
      Preference: 100 (configuration)
      Name: elan
    Local label: 24006
    Segment lists:
      SL[0]:
        Name: elan-243
        Switched Packets/Bytes: 1/106
          [MPLS -> MPLS]: 1/106
        Paths:
        Paths:
          Path[0]:
            Outgoing Label: 16003
            Outgoing Interfaces: HundredGigE0/0/0/1
            Next Hop: 24.1.1.4
            Switched Packets/Bytes: 1/106
              [MPLS -> MPLS]: 1/106
            FRR Pure Backup: No
            ECMP/LFA Backup: No
            Internal Recursive Label: Unlabelled (recursive)
            Label Stack (Top -> Bottom): { 16003 }

  Policy Packets/Bytes Switched: 1/106

RP/0/RSP0/CPU0:PE2#show bgp l2vpn evpn rd 192.168.0.2:300 route-type 1
Mon Feb  8 15:03:13.881 UTC
BGP router identifier 192.168.0.2, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 29
BGP NSR Initial initsync version 2 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 192.168.0.2:300 (default for vrf 300)
*> [1][0011.1111.1111.1111.1111][0]/120
                      0.0.0.0                                0 i
* i                   192.168.0.1                   100      0 i
*>i[1][0011.1111.1111.1111.1111][4294967295]/120
                      192.168.0.1                   100      0 i
*>i[1][0022.2222.2222.2222.2222][0]/120
                      192.168.0.3 C:30
                                                    100      0 i
*>i[1][0022.2222.2222.2222.2222][4294967295]/120
                      192.168.0.3 C:30
                                                    100      0 i

Processed 4 prefixes, 5 paths

RP/0/RSP0/CPU0:PE2#show bgp l2vpn evpn rd 192.168.0.2:300 [1][0022.2222.2222.2222.2222][0]/120
Mon Feb  8 15:04:12.073 UTC
BGP routing table entry for [1][0022.2222.2222.2222.2222][0]/120, Route Distinguisher: 192.168.0.2:300
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                 29          29
Last Modified: Feb  8 13:15:06.364 for 01:49:06
Paths: (1 available, best #1)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Not advertised to any peer
  Local
    192.168.0.3 C:30 (bsid:24007) (metric 2) from 192.168.0.5 (192.168.0.3)
      Received Label 24000
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, imported, rib-install
      Received Path ID 0, Local Path ID 1, version 29
      Extended community: Color:30 RT:65001:300
      Originator: 192.168.0.3, Cluster list: 192.168.0.5
      SR policy color 30, up, not-registered, bsid 24007

      Source AFI: L2VPN EVPN, Source VRF: default, Source Route Distinguisher: 192.168.0.3:300

RP/0/RSP0/CPU0:PE2#show evpn internal-label vpn-id 300 det
Mon Feb  8 15:04:56.825 UTC

VPN-ID     Encap  Ethernet Segment Id         EtherTag     Label
---------- ------ --------------------------- ----------   --------
300        MPLS   0011.1111.1111.1111.1111    0            24009
   Multi-paths resolved: TRUE (Remote all-active)
   Multi-paths Internal label: 24009
    MAC         192.168.0.1                                24000
    EAD/ES      192.168.0.1                                0
    EAD/EVI     192.168.0.1                                24000
   Summary pathlist:
 0xffffffff (P) 192.168.0.1                                24000

300        MPLS   0022.2222.2222.2222.2222    0            24008
   Multi-paths resolved: TRUE (Remote all-active)
   Multi-paths Internal label: 24008
    MAC         192.168.0.3                                24000
    EAD/ES      192.168.0.3                                0
    EAD/EVI     SR-TE BSID 24007
   Summary pathlist:
 0xffffffff (P) SR-TE BSID 24007

RP/0/RSP0/CPU0:PE2#show mpls lsd forwarding labels 24008 det
Mon Feb  8 15:05:59.926 UTC
In_Label, (ID), Path_Info: <Type>
24008, (EVPN, id:0x12c encap:0xa tag:0x0 ESI:0x22222200), {}, 1 Paths,
        Owner=L2VPN(A)
   1/1: IPv4, 'default':4U, BSID/24007, nh=0.0.0.0, lbl=24000
            lbl flags= {0x0}, ext_flags=0x8400 (EVPN-Internal-Label, Binding SID) path_flags=0x0
            nh-id=0x0, path-id=0, backup-path-id=0, load-metric=0
            MPLS eid: N/A
      BCDL priority:3, LSD queue:18, version:20,
      flags: 0x8, fwd_flags: 0x0 (),
      Installed Feb  8 13:15:06.157 (01:50:53 ago)
      Prefix eid: N/A

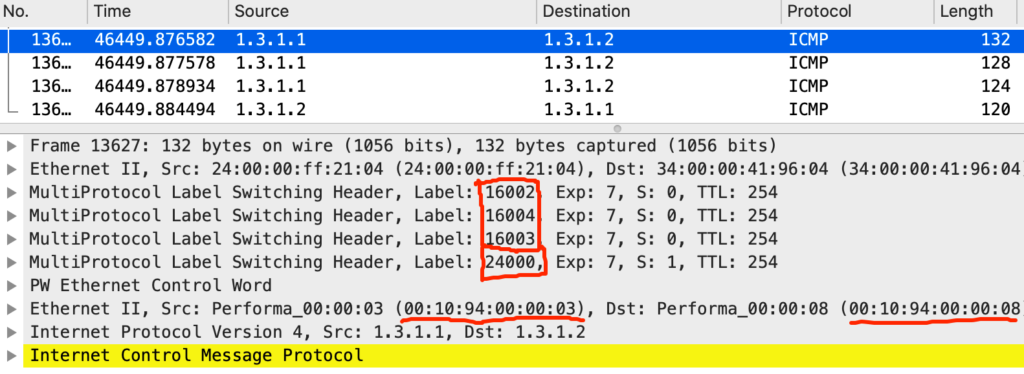

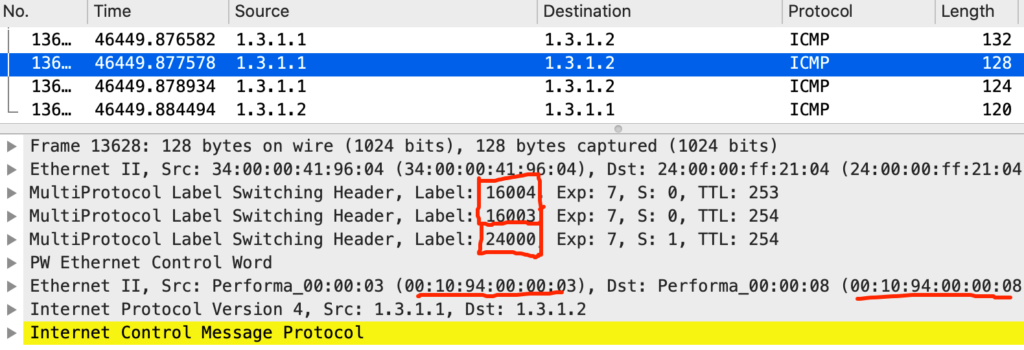

抓包信息 – 在PE2出向抓

为了验证信息,我在PE2和PE4之间多加了几个标签:

场景2:PE3 是 Head-End

配置

PE3配置类似,但这里用到了ODN,目前PE1和PE2是Multi-Homing,因此需要配置两个SR Policy,由于有了ODN后,就可以根据BGP的下一跳自动实例化Policy了,如果ODN在绑定了flexalgo自定义的切片,那么就可以自动化区分服务了;目前有很多人都喜欢静态配置SRTE路径,这样可以更好的控制路径,但往往在一个规模较大的网络中,都用静态的路径对运维人员造成了非常严重的负担,另外自定义的路径也导致报头的极具增加,损耗链路资源的利用率

extcommunity-set opaque color60
  60
end-set
!
route-policy evpn-color-in
  if evpn-route-type is 1 then
    set extcommunity color color60
  endif
  pass
end-policy
!
evpn
 evi 300
  bgp
   route-policy import evpn-color-in
  !
segment-routing
 traffic-eng
  on-demand color 60
   dynamic
    metric
     type igp
    !

验证信息

输出信息类似

RP/0/RSP0/CPU0:PE3#sh mpls for
Tue Feb  9 01:59:14.021 UTC
Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
16001  16001       SR Pfx (idx 1)     Hu0/0/0/0    34.1.1.4        80336
16002  16002       SR Pfx (idx 2)     Hu0/0/0/0    34.1.1.4        50754
16004  Pop         SR Pfx (idx 4)     Hu0/0/0/0    34.1.1.4        0
24000  Pop         EVPN:300 U         BD=0 E       point2point     276
24001  Pop         EVPN:300 M         BD=0 EIM     point2point     512
24003  Pop         SR Adj (idx 1)     Hu0/0/0/0    34.1.1.4        0
24004  Pop         SR Adj (idx 3)     Hu0/0/0/0    34.1.1.4        0
24005  Pop         SR Adj (idx 1)     Hu0/0/0/4    35.1.1.5        0
24006  Pop         SR Adj (idx 3)     Hu0/0/0/4    35.1.1.5        0
24007  24000       EVPN:300                        point2point     0
       24002       EVPN:300                        point2point     0
24008  Pop         No ID              Hu0/0/0/0    34.1.1.4        0
24009  Pop         No ID              Hu0/0/0/0    34.1.1.4        0
24010  16001       SR TE: 1 [TE-INT]  Hu0/0/0/0    34.1.1.4        0
24011  16002       SR TE: 2 [TE-INT]  Hu0/0/0/0    34.1.1.4        276
24012  Pop         No ID              srte_c_60_ep point2point     0
24013  Pop         No ID              srte_c_60_ep point2point     264
RP/0/RSP0/CPU0:PE3#
RP/0/RSP0/CPU0:PE3#show segment-routing traffic-eng policy tabular
Tue Feb  9 01:59:31.340 UTC

 Color             Endpoint  Admin   Oper              Binding
                             State  State                  SID
------ -------------------- ------ ------ --------------------
    60          192.168.0.1     up     up                24012
    60          192.168.0.2     up     up                24013
RP/0/RSP0/CPU0:PE3#
RP/0/RSP0/CPU0:PE3#show segment-routing traffic-eng policy  color 60
Tue Feb  9 01:59:43.338 UTC

SR-TE policy database
---------------------

Color: 60, End-point: 192.168.0.1
  Name: srte_c_60_ep_192.168.0.1
  Status:
    Admin: up  Operational: up for 12:34:46 (since Feb  8 13:24:56.814)
  Candidate-paths:
    Preference: 200 (BGP ODN) (active)
      Requested BSID: dynamic
        Protection Type: protected-preferred
        Maximum SID Depth: 10
      Dynamic (valid)
        Metric Type: IGP,   Path Accumulated Metric: 2
          16001 [Prefix-SID, 192.168.0.1]
    Preference: 100 (BGP ODN)
      Requested BSID: dynamic
      PCC info:
        Symbolic name: bgp_c_60_ep_192.168.0.1_discr_100
        PLSP-ID: 1
        Protection Type: protected-preferred
        Maximum SID Depth: 10
      Dynamic (pce) (invalid)
      Last error: No path
        Metric Type: NONE,   Path Accumulated Metric: 0
  Attributes:
    Binding SID: 24012
    Forward Class: Not Configured
    Steering labeled-services disabled: no
    Steering BGP disabled: no
    IPv6 caps enable: yes
    Invalidation drop enabled: no

Color: 60, End-point: 192.168.0.2
  Name: srte_c_60_ep_192.168.0.2
  Status:
    Admin: up  Operational: up for 12:34:46 (since Feb  8 13:24:56.814)
  Candidate-paths:
    Preference: 200 (BGP ODN) (active)
      Requested BSID: dynamic
        Protection Type: protected-preferred
        Maximum SID Depth: 10
      Dynamic (valid)
        Metric Type: IGP,   Path Accumulated Metric: 2
          16002 [Prefix-SID, 192.168.0.2]
    Preference: 100 (BGP ODN)
      Requested BSID: dynamic
      PCC info:
        Symbolic name: bgp_c_60_ep_192.168.0.2_discr_100
        PLSP-ID: 2
        Protection Type: protected-preferred
        Maximum SID Depth: 10
      Dynamic (pce) (invalid)
      Last error: No path
        Metric Type: NONE,   Path Accumulated Metric: 0
  Attributes:
    Binding SID: 24013
    Forward Class: Not Configured
    Steering labeled-services disabled: no
    Steering BGP disabled: no
    IPv6 caps enable: yes
    Invalidation drop enabled: no

RP/0/RSP0/CPU0:PE3#show bgp l2vpn evpn rd 192.168.0.3:300
Tue Feb  9 02:00:15.774 UTC
BGP router identifier 192.168.0.3, local AS number 65001
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0   RD version: 0
BGP main routing table version 32
BGP NSR Initial initsync version 2 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs

Status codes: s suppressed, d damped, h history, * valid, > best
              i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
   Network            Next Hop            Metric LocPrf Weight Path
Route Distinguisher: 192.168.0.3:300 (default for vrf 300)
*>i[1][0011.1111.1111.1111.1111][0]/120
                      192.168.0.1 C:60
                                                    100      0 i
* i                   192.168.0.2 C:60
                                                    100      0 i
*>i[1][0011.1111.1111.1111.1111][4294967295]/120
                      192.168.0.1 C:60
                                                    100      0 i
* i                   192.168.0.2 C:60
                                                    100      0 i
*> [1][0022.2222.2222.2222.2222][0]/120
                      0.0.0.0                                0 i
*>i[2][0][48][0010.9400.0003][0]/104
                      192.168.0.1                   100      0 i
* i                   192.168.0.2                   100      0 i
*> [2][0][48][0010.9400.0008][0]/104
                      0.0.0.0                                0 i
*>i[3][0][32][192.168.0.1]/80
                      192.168.0.1                   100      0 i
*>i[3][0][32][192.168.0.2]/80
                      192.168.0.2                   100      0 i
*> [3][0][32][192.168.0.3]/80
                      0.0.0.0                                0 i

Processed 8 prefixes, 11 paths
RP/0/RSP0/CPU0:PE3#show bgp l2vpn evpn rd 192.168.0.3:300  [1][0011.1111.1111.1111.1111][0]/120
Tue Feb  9 02:00:32.681 UTC
BGP routing table entry for [1][0011.1111.1111.1111.1111][0]/120, Route Distinguisher: 192.168.0.3:300
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                 31          31
Last Modified: Feb  8 13:24:59.797 for 12:35:33
Paths: (2 available, best #1)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Not advertised to any peer
  Local
    192.168.0.1 C:60 (bsid:24012) (metric 2) from 192.168.0.5 (192.168.0.1)
      Received Label 24000
      Origin IGP, localpref 100, valid, internal, best, group-best, import-candidate, imported, rib-install
      Received Path ID 0, Local Path ID 1, version 26
      Extended community: Color:60 RT:65001:300
      Originator: 192.168.0.1, Cluster list: 192.168.0.5
      SR policy color 60, up, registered, bsid 24012, if-handle 0x02000220

      Source AFI: L2VPN EVPN, Source VRF: default, Source Route Distinguisher: 192.168.0.1:300
  Path #2: Received by speaker 0
  Not advertised to any peer
  Local
    192.168.0.2 C:60 (bsid:24013) (metric 2) from 192.168.0.5 (192.168.0.2)
      Received Label 24002
      Origin IGP, localpref 100, valid, internal, import-candidate, imported, rib-install
      Received Path ID 0, Local Path ID 0, version 0
      Extended community: Color:60 RT:65001:300
      Originator: 192.168.0.2, Cluster list: 192.168.0.5
      SR policy color 60, up, registered, bsid 24013, if-handle 0x02000260

      Source AFI: L2VPN EVPN, Source VRF: default, Source Route Distinguisher: 192.168.0.2:300
RP/0/RSP0/CPU0:PE3#
RP/0/RSP0/CPU0:PE3#show evpn internal-label vpn-id 300 det
Tue Feb  9 02:00:49.224 UTC

VPN-ID     Encap  Ethernet Segment Id         EtherTag     Label
---------- ------ --------------------------- ----------   --------
300        MPLS   0011.1111.1111.1111.1111    0            24007
   Multi-paths resolved: TRUE (Remote all-active)
   Multi-paths Internal label: 24007
    MAC         192.168.0.1                                24000
                192.168.0.2                                24002
    EAD/ES      192.168.0.1                                0
                192.168.0.2                                0
    EAD/EVI     SR-TE BSID 24012
                SR-TE BSID 24013
   Summary pathlist:
 0xffffffff (P) SR-TE BSID 24012
 0xffffffff (P) SR-TE BSID 24013

抓包信息

由于我没有绑定flexalgo 自定义切片,再加上目前topology简单,所以只有一层label,因此就不抓包展示了,如果需要看最后的附件

快速收敛

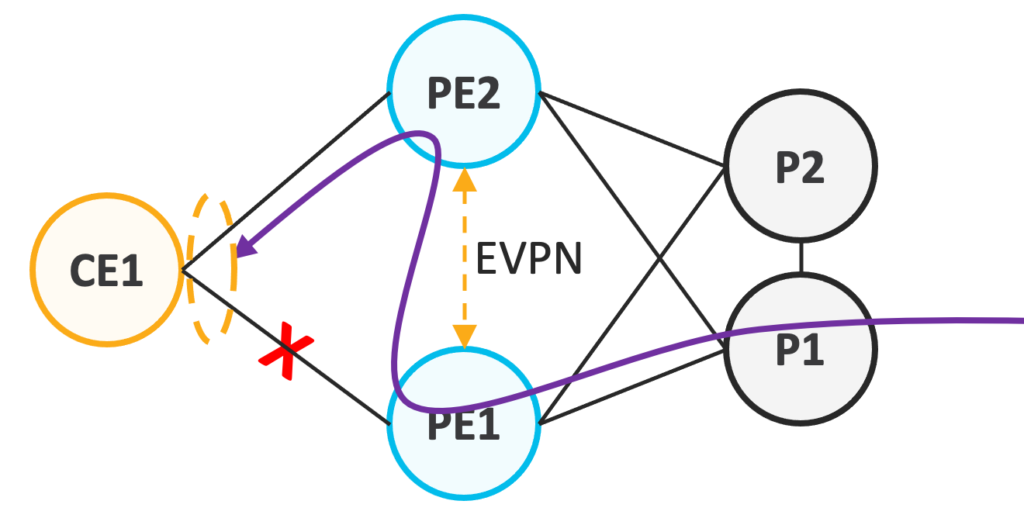

L3VPN中有PIC-Edge来加速BGP收敛速度,那么EVPN ELAN是否也有类似的技术?默认情况下,我们在H1上关闭H1和PE2的链路,流量会绕行到PE1,这期间需要一定的收敛时间

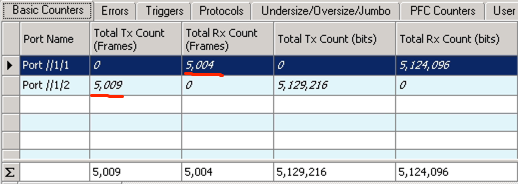

在我的测试中,100pps(128byte)的发包速度,收敛后丢了5个报文

在IOS XR中,731会正式支持,如下PE1和PE2的配置:

evpn
 interface Bundle-Ether100
  ethernet-segment
   convergence
    reroute
   !

开启reroute后,可以看下LFIB,PE1和PE2上均多了一个Label,此处只贴PE2的

RP/0/RSP0/CPU0:PE2#sh mpls for
Tue Feb  9 03:19:23.371 UTC
Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
16001  16001       SR Pfx (idx 1)     Hu0/0/0/1    24.1.1.4        0
16003  16003       SR Pfx (idx 3)     Hu0/0/0/1    24.1.1.4        60
16004  Pop         SR Pfx (idx 4)     Hu0/0/0/1    24.1.1.4        330
24000  Pop         SR Adj (idx 1)     Hu0/0/0/1    24.1.1.4        0
24001  Pop         SR Adj (idx 3)     Hu0/0/0/1    24.1.1.4        0
24002  Pop         EVPN:300 U         BD=0 E       point2point     828840
24003  Pop         EVPN:300 M         BD=0 EIM     point2point     1088
24005  Pop         No ID              Hu0/0/0/1    24.1.1.4        0
24006  Pop         EVPN:300 F         BD=0 EF      point2point     0
24007  Pop         No ID              srte_c_30_ep point2point     408
24008  24000       EVPN:300                        point2point     0
24009  24000       EVPN:300                        192.168.0.1     0
24010  16002       SR TE: 1 [TE-INT]  Hu0/0/0/1    24.1.1.4        318

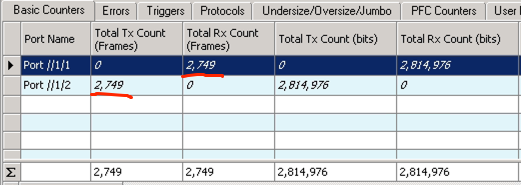

我们用同样的测试方法,发现已经不再丢包了

附件

测试由于跨了一个晚上,对于PE2面向Core的抓包,我过滤了中间没有用的label(800-13420),否则文件太大

本文出自 Frank's Blog

版权声明:


本文链接:EVPN ELAN over SRTE
版权声明:本文为原创文章,仅代表个人观点,版权归 Frank Zhao 所有,转载时请注明本文出处及文章链接
你可以留言,或者trackback 从你的网站

留言哦

blonde teen swallows load.xxx videos
