Segment Routing Microloop Avoidance – 微环避免

对于SR的微环避免,很多人不是特别清楚细节,所以我将在此简单总结下,希望对阅读此篇文章的人有所帮助,我会围绕以下几个话题展开讨论:

  • 微环路是什么?微环避免能做什么?
  • 微环避免跟TI-LFA有什么关系?
  • 微环避免和TI-LFA同时存在的情况下,是否都会有作用?

为了方便大家理解,我将用一个topology来讨论我们今天涉及的所有内容,关于这部分更详细的内容,可以参阅SR卷一的9.10章节,以及SR卷二的8.11.1章节;另外此分析只作为问题验证说明,不能直接拿到现网使用,如40s的delay等,这些需要根据IGP的Scales以及硬件的收敛性能来做调整

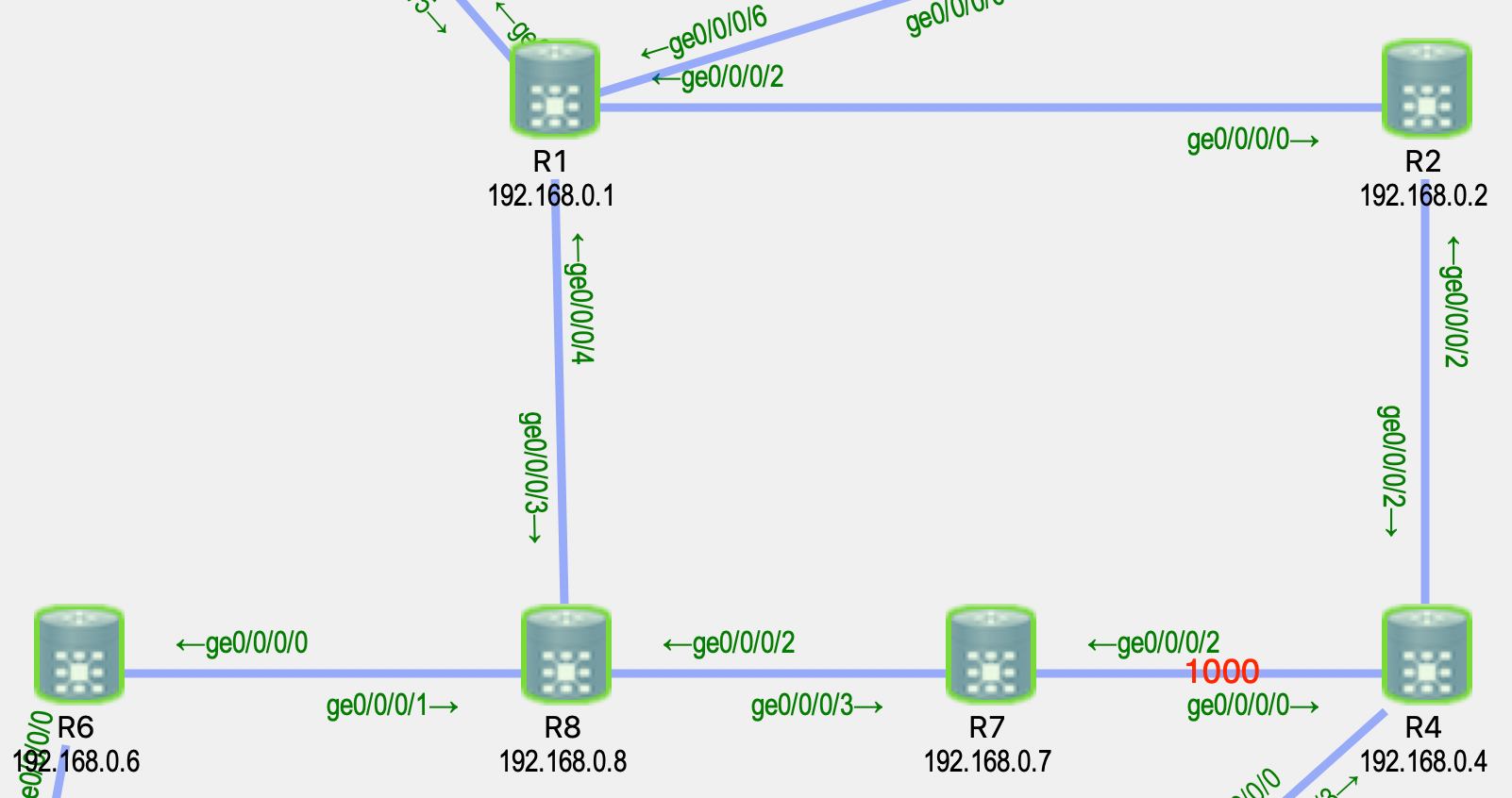

Topology

  1. R7和R4直接的IGP Metric为1000,其余所有Link的默认IGP Metric均为10;
  2. 橘黄色为收敛前路径,草绿色为收敛后路径
  3. Trex从R6到R4发送20Mbps(1200byte,2kpps)流量,激活流为2条,分别是L3VPN和EVPN流量,下面是流量速率情况
  4. 由于测试环境简单,为了模拟微环路的产生,会在某些设备上调慢路由收敛时间来模拟收敛时间的差异
  5. 测试开始前清除Trex中的所有统计,收敛完成后等1分钟时间,然后停止流量,截取统计
  6. 所有测试设备均为Xrv9k,版本7.0.1

什么是微环路

首先来看下什么是微环路?其实简单来说就是由于每台设备收敛时间不一致,导致了短暂的环路,这种问题一直伴随着IP的发展直到今天。有人可能会问,如果是同样的设备(具有同样的硬件)是不是就没有微环路了?其实即使设备硬件完全一致,也无法保证CPU及内存(不限于此,还有NP/Asic等其他组件)的消耗完全一致,所以在CPU及硬件计算IGP变化并发送更新这段时间内,就导致了速度差异,从而产生了微环路。

那在没有SR之前,业界是如何处理微环路的?确实业界想了很多方法,但都不是很满意,要么只能解决本地微环路,要么就是太复杂,不适合大规模部署(具体看前面说的SR卷一),直到 Segment Routing 的出现,才打破了僵局。

为什么现在提微环路

之前IGP的收敛时间较长(即使做了优化),微环路被整体收敛时间掩盖了,但有了Ti-LFA后,IGP收敛被降低到了50ms之内,所以此时微环路的影响就被放大了,从而再次跳进大众的视野

微环避免

在进入讨论前,简单总结下微环避免技术,在这里思科支持两种微环避免技术,远端微环避免(也叫SR微环避免)使用范围更广

  1. 本地微环避免:启动CLI为 “microloop avoidance”,在此模式下,该设备会延迟 RIB 更新时间,让Ti-LFA的路径保持到延迟超时,大概过程为 “该设备链路down -> Ti-LFA 保护 -> backup 路径保持设置的时间 -> 超时撤销并更新RIB表象”;注意此模式只能被Link Down触发
  2. 远端微环避免:启动CLI为“microloop avoidance segment-routing”,在此模式下,该设备不会延迟RIB更新,而是先收敛,然后安装一条无微环的显示路径,这个路径通过auto tunnel才完成,大概过程为“[该设备链路down -> Ti-LFA 保护 -> 收敛完成 -> 算出一条无微环路径, 并替换原来的Ti-LFA路径] -> 设置延迟超时后,撤销这个显示路径” ;此模式可以被多种场景触发:
    1. 链路 Down(包括 BFD down)
    2. 链路 Up
    3. Metric变更
    4. Overload bit 设置/清除

对于Ti-LFA,它可以在link down的场景中提供保护,让丢包影响降到最低(50ms);其他的场景如上面说的Link up,Metric变更及Overload bit变更,通过微环避免理论可以做到0丢包

默认情况,无Ti-LFA和微环避免

默认情况下,即没Ti-LFA,也没微环路避免,当R1和R8的链路发生故障,会发生什么?通过下面图例可以很容易理解之间的关系(注意这里标注的收敛时间,只是一个示例,因为比较容易说明问题),所以在默认情况下,业务影响会持续300ms(根据第1个测试结果,总共丢了184个报文

开启Ti-LFA

Ok,那么我们来看下,如果我们在R8上开启了Ti-LFA,会有什么结果?可以看到T2的收敛时间减少到50ms以内,因为已经有backup的路径预先写进了R8的HW Cef,由于干净简单的测试环境,R7和R8基本同时完成了收敛,所以总共业务影响时间为50ms,Ti-LFA的切换时间(根据第2个测试结果,总共丢了0个报文

Ti-LFA + 本地微环路场景

为了模拟真实环境,增加R7的LSP更新时间,这样会导致R7的收敛时间大于R8的收敛时间,由于R8完成收敛后,会撤销Ti-LFA的路径(R7的Prefix-sid,R7跟R4的Adj-sid),所以R8会基于更新后的路径(R4的Prefix-sid)转发,但此时R7还没更新完,在R7上R4的Prefix-sid仍然从R8学来,所以就造成了微环路。因此将会有100ms的业务影响,总共业务影响时间为150ms。因此即使有Ti-LFA的保护,有时候也会因为微环路导致收敛时间大于50ms根据第3个测试结果,总共丢了21499个报文

Ti-LFA + 本地微环避免

我们来看看本地微环避免机制,在这个场景中,这个微环对R8来说属于本地微环,R8上开启本地微环避免后,路由RIB更新将delay一定时间x,Ti-LFA的路径保持x s后才撤销,所以微环被避免了,因为Ti-LFA的备份路径已经考虑微环的可能性了,因此理论上业务影响时间只跟Ti-LFa 硬件表项切换的时间相等,所以应该在50ms以内(根据第4个测试结果,总共丢了0个报文

Ti-LFA + 远端微环路场景

上面讨论的是本地微环及避免机制,现在我们来聊聊远端微环路,那么什么是远端微环路?用下图说明会相对简单,在 R2开启了本地微环避免和Ti-LFA,跟刚才R8的场景类似,故障发生时,R2会延迟Rib更新走Ti-LFA,这样对数据增加了两个标签<16007, 24003>做保护,但对于中间设备R1、R8和R7来说,即使都开了本地微环路避免,但由于这些设备的链路没有down,所以不会触发本地微环避免机制,那么仍然会指向R2,所以R1,R8和R7在完成收敛前都会导致微环路(根据第5个测试结果,总共丢了20716个报文

Ti-LFA + 远端微环避免

让我们在R2和R8上开启远端微环路。开启后,该设备都会根据自身情况独自完成各自的微环避免与路径上设备的收敛顺序无关。这样为大规模部署提供了前提(如果避免机制需要依赖并同步完成,那么无法避免“同步收敛”的问题)。R2微环避免的触发是通过link down,而R8则是通过路由收敛触发远端微环避免。触发后,R2和R8独自完成收敛,并使用自动计算的路径(这个路径跟Ti-LFA计算的路径一致<16007,24003>,无微环),延迟超时后,切换到收敛后的路径即可。在只有R2和R8实现微环避免,并在现有场景中,整个收敛影响被控制在50ms内(更详细的信息可以看第6个测试,测试结果只丢了1018个报文

为了达到最好的微环避免效果,全网开启SR微环避免,分析后整个处理过程如下图所示,注意标红的那根时间线,也就是说网络设备中最差的收敛延迟应该 < = T1 + T2 + T3,如果大于这个值,那么微环路有可能仍然存在;另外因为行为是独立的,所以在不同时间段,流量走向也会不尽相同,打个比方,如果R6先于R8收敛完并安装了显示路径,那么流量会直接被调度到R7并根据<16007, 24003>传给R4,这期间流量不会再从R8->R1,但R8仍然会走完远端微环避免的流程,因为此时可能会有流量从R8到R4,而不是只有R6到R4;(更详细的信息可以看第7个测试,测试结果总共丢了0个报文

微环避免之链路UP

前面一直在讨论链路down的场景,链路up的微环路是什么情况?我们可以看下面的图例,最坏的收敛场景:T1 -> T2 -> T3 -> T4,那么随之而来的就是R8和R1,R1和R2之间的微环路。为了达到测试效果,关闭SR微环避免并根据最坏收敛场景来改变LSP update的时间(R8 10s; R1 20s; R2 30s; ),CLI为“spf-interval maximum-wait 60000 initial-wait x0000”,测试结果符合预期,丢包大小为“41627”(更详细的信息可以看第8个测试,测试结果总共丢了41627个报文

这种场景Ti-LFA是不能解决的,本地微环避免也不能解决,所以只能通过SR微环避免来解决。我们在上面实验的基础上启动SR微环避免,LSP更新延迟不改变,在这种情况下打开R2和R4之间的链路,我们发现已经没有业务影响了,因为微环路已经被避免了(更详细的信息可以看第9个测试,测试结果总共丢了0个报文

实际测试结果

1st. 默认情况下

2nd. 在R8开启Ti-LFA

RP/0/RP0/CPU0:R8(config)#show config
Sat Mar  7 09:50:04.004 UTC
Building configuration...
!! IOS XR Configuration 7.0.1
router isis srte
 interface GigabitEthernet0/0/0/1
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface GigabitEthernet0/0/0/2
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface GigabitEthernet0/0/0/3
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
!
end

RP/0/RP0/CPU0:R8#sh isis fast-reroute 192.168.0.4/32
Sat Mar  7 09:56:45.863 UTC

L2 192.168.0.4/32 [30/115]
     via 18.1.1.1, GigabitEthernet0/0/0/3, R1, SRGB Base: 16000, Weight: 0
       Backup path: TI-LFA (link), via 78.1.1.7, GigabitEthernet0/0/0/2 R7, SRGB Base: 16000, Weight: 0, Metric: 1010
         P node: R7.00 [192.168.0.7], Label: ImpNull
         Q node: R4.00 [192.168.0.4], Label: 24003
         Prefix label: ImpNull
         Backup-src: R4.00

3rd. 在R7模拟微环路

RP/0/RP0/CPU0:R7(config)#show config
Sat Mar 7 10:07:09.335 UTC
Building configuration...
!! IOS XR Configuration 7.0.1
router isis srte
 address-family ipv4 unicast
  spf-interval maximum-wait 20000 initial-wait 10000
 !
!
end



4th. 在R8开启本地微环避免

RP/0/RP0/CPU0:R8(config-isis-af)#show config
Tue Mar 10 23:37:08.614 UTC
Building configuration...
!! IOS XR Configuration 7.0.1
router isis srte
 address-family ipv4 unicast
  microloop avoidance
  microloop avoidance rib-update-delay 40000
 !
!
end

RP/0/RP0/CPU0:R8(config-isis-af)#commit
Tue Mar 10 23:37:15.376 UTC
RP/0/RP0/CPU0:R8(config-isis-af)#do sh isis | i "Microloop|RIB|State"
Tue Mar 10 23:37:49.019 UTC
        Microloop avoidance: Enabled
          Configuration: Type: All prefixes, RIB update delay: 40000 msec

从下面可以看到,当R8的link down时,RIB的信息保持不变,因为RIB暂时被抑制了,但硬件中其实已经被Ti-LFA保护了,所以测试结果是0丢包

RP/0/RP0/CPU0:R8(config)#int  gi0/0/0/3
RP/0/RP0/CPU0:R8(config-if)#shut
RP/0/RP0/CPU0:R8(config-if)#commit
Tue Mar 10 23:52:04.200 UTC       <<<
RP/0/RP0/CPU0:R8(config-if)#do sh route 192.168.0.4
Tue Mar 10 23:52:12.660 UTC     <<<

Routing entry for 192.168.0.4/32
  Known via "isis srte", distance 115, metric 30, labeled SR, type level-2
  Installed Mar 10 23:51:28.804 for 00:00:44  <<< not update, delay
  Routing Descriptor Blocks
    18.1.1.1, from 192.168.0.4, via GigabitEthernet0/0/0/3, Protected
      Route metric is 30
    78.1.1.7, from 192.168.0.4, via GigabitEthernet0/0/0/2, Backup (TI-LFA)
      Repair Node(s): 192.168.0.7, 192.168.0.4
      Route metric is 1010
  No advertising protos.

5th. R2上的本地微环避免和Ti-LFA

在R2上开启微环避免和Ti-LFA,backup 路径的第一跳在R7上,注意R7上的lsp delay我没去掉,就是为了验证

RP/0/RP0/CPU0:R2(config-isis-af)#show config
Wed Mar 11 00:01:30.588 UTC
Building configuration...
!! IOS XR Configuration 7.0.1
router isis srte
 address-family ipv4 unicast
  microloop avoidance
  microloop avoidance rib-update-delay 40000
 !
 interface GigabitEthernet0/0/0/0
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
 interface GigabitEthernet0/0/0/2
  address-family ipv4 unicast
   fast-reroute per-prefix
   fast-reroute per-prefix ti-lfa
  !
 !
!
end

RP/0/RP0/CPU0:R2(config-isis-af)#commit
Wed Mar 11 00:01:52.481 UTC
RP/0/RP0/CPU0:R2(config-isis-af)#end
RP/0/RP0/CPU0:R2#sh isis fast-reroute 192.168.0.4/32
Wed Mar 11 00:01:58.034 UTC

L2 192.168.0.4/32 [10/115]
     via 24.1.1.4, GigabitEthernet0/0/0/2, R4, SRGB Base: 16000, Weight: 0
       Backup path: TI-LFA (link), via 12.1.1.1, GigabitEthernet0/0/0/0 R1, SRGB Base: 16000, Weight: 0, Metric: 1030
         P node: R7.00 [192.168.0.7], Label: 16007  <<<
         Q node: R4.00 [192.168.0.4], Label: 24003  <<<
         Prefix label: ImpNull
         Backup-src: R4.00

关闭R2与R4之间的链路,可以看到只有R2的RIB被抑制了

RP/0/RP0/CPU0:R2(config-if)#show config
Wed Mar 11 00:17:16.306 UTC
Building configuration...
!! IOS XR Configuration 7.0.1
interface GigabitEthernet0/0/0/2
 shutdown
!
end

RP/0/RP0/CPU0:R2(config-if)#commit
Wed Mar 11 00:17:31.271 UTC  <<< shutdown time
RP/0/RP0/CPU0:R2(config-if)#end
RP/0/RP0/CPU0:R2#
RP/0/RP0/CPU0:R2#sh route 192.168.0.4/32 det
Wed Mar 11 00:17:34.813 UTC  <<<

Routing entry for 192.168.0.4/32
  Known via "isis srte", distance 115, metric 10, labeled SR, type level-2
  Installed Mar 10 23:59:26.405 for 00:18:08  <<< update delay
  Routing Descriptor Blocks
    12.1.1.1, from 192.168.0.4, via GigabitEthernet0/0/0/0, Backup (TI-LFA)
      Repair Node(s): 192.168.0.7, 192.168.0.4
      Route metric is 1030
      Labels: 0x3e87 0x5dc3 (16007 24003)
      Tunnel ID: None
      Binding Label: None
      Extended communities count: 0
      Path id:65              Path ref count:1
      NHID:0x1(Ref:16)
    24.1.1.4, from 192.168.0.4, via GigabitEthernet0/0/0/2, Protected
      Route metric is 10
      Label: 0x3 (3)
      Tunnel ID: None
      Binding Label: None
      Extended communities count: 0
      Path id:1       Path ref count:0
      NHID:0x2(Ref:15)
      Backup path id:65
  Route version is 0x19 (25)
......

我们来看看R8的信息,它也配置了本地微环避免,由于不是R8本身的事件,所以没有触发,符合我们的预期,因此本地微环无法解决这种场景

RP/0/RP0/CPU0:R8#sh route 192.168.0.4/32 det
Wed Mar 11 00:17:33.650 UTC  <<<

Routing entry for 192.168.0.4/32
  Known via "isis srte", distance 115, metric 1010, labeled SR, type level-2
  Installed Mar 11 00:17:30.484 for 00:00:03 <<< updated
  Routing Descriptor Blocks
    78.1.1.7, from 192.168.0.4, via GigabitEthernet0/0/0/2
      Route metric is 1010
      Label: 0x3e84 (16004)
      Tunnel ID: None
      Binding Label: None
      Extended communities count: 0
      Path id:1       Path ref count:0
      NHID:0x2(Ref:6)
  Route version is 0x1a (26)
  Local Label: 0x3e84 (16004)
......

6th. 在R2和R8上开启SR微环避免

远端微环避免CLI跟本地类似,只是要把SR的关键字加上,另外根据平台的不同,加上“ipv4 unnumbered mpls traffic-eng Loopback0”,如NCS5500不需要加,但ASR9k/Xrv9k需要加(我手里没有NCS5500,如果以后有机会验证,到时再更新下),如下所示:

(config-isis-af)#show config
Wed Mar 11 00:35:51.194 UTC
Building configuration...
!! IOS XR Configuration 7.0.1
ipv4 unnumbered mpls traffic-eng Loopback0 <<<
router isis srte
 address-family ipv4 unicast
  microloop avoidance segment-routing
  microloop avoidance rib-update-delay 40000
 !

开启后,关闭R2与R4之间的链路,然后我们来看看R2上的信息,可以看到auto tunnel已经建立了,并使用了SR的label<16007, 24003>,RIB已经跟其关联;fast-reroute中我们可以看到针对不同IGP都会关联一个无微环的路径,保证从这个设备到其他节点的流量都被保护

RP/0/RP0/CPU0:R2(config)#int gi0/0/0/2
RP/0/RP0/CPU0:R2(config-if)#shut
RP/0/RP0/CPU0:R2(config-if)#commit
Wed Mar 11 01:21:16.016 UTC
RP/0/RP0/CPU0:R2(config-if)#end
RP/0/RP0/CPU0:R2#sh isis | i "Microloop|RIB|State"
Wed Mar 11 01:21:19.919 UTC
        Microloop avoidance: Enabled
          Configuration: Type: Segment routing, RIB update delay: 40000 msec
          State: Active, Duration: 3824 ms, Event Link down, Near: R2.00 Far: R4.00  <<<

RP/0/RP0/CPU0:R2#sh route 192.168.0.4/32 det
Wed Mar 11 01:21:20.070 UTC

Routing entry for 192.168.0.4/32
  Known via "isis srte", distance 115, metric 1030, labeled SR, type level-2
  Installed Mar 11 01:21:16.925 for 00:00:03
  Routing Descriptor Blocks
    directly connected, via tunnel-te32774  <<<
      Route metric is 1030
      Label: 0x3 (3)
      Tunnel ID: None
      Binding Label: None
      Extended communities count: 0
      Path id:1       Path ref count:0
      NHID:0x0(Ref:0)
  Route version is 0x2c (44)
  Local Label: 0x3e84 (16004)
......
RP/0/RP0/CPU0:R2#sh isis route 192.168.0.4/32 det
Wed Mar 11 01:21:20.287 UTC

L2 192.168.0.4/32 [1030/115] Label: 16004, medium priority
     via 12.1.1.1, GigabitEthernet0/0/0/0, R1, SRGB Base: 16000, Weight: 0
     exp 12.1.1.1, GigabitEthernet0/0/0/0, R1, SRGB Base: 16000, Weight: 0
       via tunnel tunnel-te32774
         P node: R7.00 [192.168.0.7], Label: 16007
         Q node: R4.00 [192.168.0.4], Label: 24003
     src R4.00-00, 192.168.0.4, prefix-SID index 4, R:0 N:1 P:0 E:0 V:0 L:0,
         Alg:0, prefix-SID index 804, R:0 N:1 P:0 E:0 V:0 L:0, Alg:128
RP/0/RP0/CPU0:R2#sh isis fast-reroute tunnel
Wed Mar 11 01:21:20.424 UTC

IS-IS srte SRTE backup tunnels

tunnel-te32775, state up, type primary-uloop
  Outgoing interface: GigabitEthernet0/0/0/0
  Next hop: 12.1.1.1
  Label stack: 16007
  Prefix: 47.1.1.0/24

tunnel-te32772, state up, type primary-uloop
  Outgoing interface: GigabitEthernet0/0/0/0
  Next hop: 12.1.1.1
  Label stack: 16806
  Prefix: 192.168.0.6/32(128)

tunnel-te32773, state up, type primary-uloop
  Outgoing interface: GigabitEthernet0/0/0/0
  Next hop: 12.1.1.1
  Label stack: 16807
  Prefix: 192.168.0.4/32(128)

tunnel-te32774, state up, type primary-uloop  <<<
  Outgoing interface: GigabitEthernet0/0/0/0
  Next hop: 12.1.1.1
  Label stack: 16007, 24003   <<<
  Prefix: 24.1.1.0/24 192.168.0.4/32

我们来看看R8的信息,远端微环避免触发,并保护

RP/0/RP0/CPU0:R8#sh isis | i "Microloop|RIB|State"
Wed Mar 11 01:21:18.702 UTC
        Microloop avoidance: Enabled
          Configuration: Type: Segment routing, RIB update delay: 40000 msec
          State: Active, Duration: 3821 ms, Event Link down, Near: R2.00 Far: R4.00
RP/0/RP0/CPU0:R8#sh route 192.168.0.4/32 det
Wed Mar 11 01:21:18.844 UTC

Routing entry for 192.168.0.4/32
  Known via "isis srte", distance 115, metric 1010, labeled SR, type level-2
  Installed Mar 11 01:21:15.591 for 00:00:03
  Routing Descriptor Blocks
    directly connected, via tunnel-te32773  <<<
      Route metric is 1010
      Label: 0x3 (3)
      Tunnel ID: None
      Binding Label: None
      Extended communities count: 0
      Path id:1       Path ref count:0
      NHID:0x0(Ref:0)

RP/0/RP0/CPU0:R8#sh isis route 192.168.0.4/32 det
Wed Mar 11 01:21:19.051 UTC

L2 192.168.0.4/32 [1010/115] Label: 16004, medium priority
     via 78.1.1.7, GigabitEthernet0/0/0/2, R7, SRGB Base: 16000, Weight: 0
     exp 78.1.1.7, GigabitEthernet0/0/0/2, R7, SRGB Base: 16000, Weight: 0
       via tunnel tunnel-te32773
         P node: R7.00 [192.168.0.7], Label: ImpNull  <<<
         Q node: R4.00 [192.168.0.4], Label: 24003   <<<
     src R4.00-00, 192.168.0.4, prefix-SID index 4, R:0 N:1 P:0 E:0 V:0 L:0,
         Alg:0, prefix-SID index 804, R:0 N:1 P:0 E:0 V:0 L:0, Alg:128
RP/0/RP0/CPU0:R8#sh isis fast-reroute tunnel
Wed Mar 11 01:21:19.174 UTC

IS-IS srte SRTE backup tunnels

tunnel-te32773, state up, type primary-uloop
  Outgoing interface: GigabitEthernet0/0/0/2
  Next hop: 78.1.1.7
  Label stack: 24003  <<<
  Prefix: 24.1.1.0/24 192.168.0.4/32

我们来看下流量情况,奇怪的是我们发现有些丢包,这些丢包怎么来的?注意我们只在R2和R8上开启了SR微环避免,流量从R1转发到R2,R2最开始通过Ti-LFA保护后转给R1,此时R1还没收敛,仍然认为通过R2到R4是最优的,因此R1和R2之间的微环路导致了业务影响

7th. 全网开启SR微环避免

除了R2和R8外,在R6,R1和R7上开启SR微环避免,由于配置跟之前是一样的,所以在此省略。分析跟上面类似,在R6和R1上分别通过SR 微环避免保护,唯一要多说一句的,如果R6的收敛比R4和R8快,那么大部分流量会被直接发给R7(<16007, 24003>),而不会通过R8到R2,然后通过R2的Ti-LFA再绕回来,这也是SR微环避免的优势。我们直接来看下结果即可

注意R2关闭link的时间:

RP/0/RP0/CPU0:R2#config
Wed Mar 11 02:09:54.798 UTC
iRP/0/RP0/CPU0:R2(config)#int gi0/0/0/2
RP/0/RP0/CPU0:R2(config-if)#shut
RP/0/RP0/CPU0:R2(config-if)#commit
Wed Mar 11 02:09:59.041 UTC  <<<

我们只看下R6的信息:

RP/0/RP0/CPU0:R6#sh isis | i "Microloop|RIB|State"
Wed Mar 11 02:10:00.182 UTC
        Microloop avoidance: Enabled
          Configuration: Type: Segment routing, RIB update delay: 40000 msec
          State: Active, Duration: 2183 ms, Event Link down, Near: R2.00 Far: R4.00
RP/0/RP0/CPU0:R6#sh route 192.168.0.4/32 det
Wed Mar 11 02:10:00.298 UTC

Routing entry for 192.168.0.4/32
  Known via "isis srte", distance 115, metric 1020, labeled SR, type level-2
  Installed Mar 11 02:09:58.130 for 00:00:02
  Routing Descriptor Blocks
    directly connected, via tunnel-te32777  <<<
      Route metric is 1020
      Label: 0x3 (3)
......
RP/0/RP0/CPU0:R6#sh isis route 192.168.0.4/32 det
Wed Mar 11 02:10:00.455 UTC

L2 192.168.0.4/32 [1020/115] Label: 16004, medium priority
     via 68.1.1.8, GigabitEthernet0/0/0/0, R8, SRGB Base: 16000, Weight: 0
     exp 68.1.1.8, GigabitEthernet0/0/0/0, R8, SRGB Base: 16000, Weight: 0
       via tunnel tunnel-te32777
         P node: R7.00 [192.168.0.7], Label: 16007 <<<
         Q node: R4.00 [192.168.0.4], Label: 24003 <<<
     src R4.00-00, 192.168.0.4, prefix-SID index 4, R:0 N:1 P:0 E:0 V:0 L:0,
         Alg:0, prefix-SID index 804, R:0 N:1 P:0 E:0 V:0 L:0, Alg:128
RP/0/RP0/CPU0:R6#sh isis fast-reroute tunnel
Wed Mar 11 02:10:00.616 UTC

IS-IS srte SRTE backup tunnels

tunnel-te32776, state up, type primary-uloop
  Outgoing interface: GigabitEthernet0/0/0/0
  Next hop: 68.1.1.8
  Label stack: 16801
  Prefix: 192.168.0.2/32(128)

tunnel-te32777, state up, type primary-uloop  <<<
  Outgoing interface: GigabitEthernet0/0/0/0
  Next hop: 68.1.1.8
  Label stack: 16007, 24003
  Prefix: 24.1.1.0/24 192.168.0.4/32

8th. SR微环路 – 链路UP场景

关闭SR微环避免并延长LSP更新时间,然后看测试结果

RP/0/RP0/CPU0:R6#config
Wed Mar 11 02:22:46.662 UTC
RP/0/RP0/CPU0:R6(config)#router isis srte
RP/0/RP0/CPU0:R6(config-isis)# address-family ipv4 unicast
RP/0/RP0/CPU0:R6(config-isis-af)#no  microloop avoidance segment
RP/0/RP0/CPU0:R6(config-isis-af)#no  microloop avoidance rib-update-delay 40000
RP/0/RP0/CPU0:R6(config-isis-af)#commit

RP/0/RP0/CPU0:R7(config)#router isis srte
RP/0/RP0/CPU0:R7(config-isis)# address-family ipv4 unicast
RP/0/RP0/CPU0:R7(config-isis-af)#no  microloop avoidance segment
RP/0/RP0/CPU0:R7(config-isis-af)#no  microloop avoidance rib-update-delay 40000
RP/0/RP0/CPU0:R7(config-isis-af)#commit

RP/0/RP0/CPU0:R8(config)#router isis srte
RP/0/RP0/CPU0:R8(config-isis)# address-family ipv4 unicast
RP/0/RP0/CPU0:R8(config-isis-af)#no  microloop avoidance segment
RP/0/RP0/CPU0:R8(config-isis-af)#no  microloop avoidance rib-update-delay 40000
RP/0/RP0/CPU0:R8(config-isis-af)#spf-interval maximum-wait 60000 initial-wait 10000 <<<
RP/0/RP0/CPU0:R8(config-isis-af)#commit

RP/0/RP0/CPU0:R1(config)#router isis srte
RP/0/RP0/CPU0:R1(config-isis)# address-family ipv4 unicast
RP/0/RP0/CPU0:R1(config-isis-af)#no  microloop avoidance segment
RP/0/RP0/CPU0:R1(config-isis-af)#no  microloop avoidance rib-update-delay 40000
RP/0/RP0/CPU0:R1(config-isis-af)# spf-interval maximum-wait 60000 initial-wait 20000 <<<
RP/0/RP0/CPU0:R1(config-isis-af)#commit

RP/0/RP0/CPU0:R2(config)#router isis srte
RP/0/RP0/CPU0:R2(config-isis)# address-family ipv4 unicast
RP/0/RP0/CPU0:R2(config-isis-af)#no  microloop avoidance segment
RP/0/RP0/CPU0:R2(config-isis-af)#no  microloop avoidance rib-update-delay 40000
RP/0/RP0/CPU0:R2(config-isis-af)# spf-interval maximum-wait 60000 initial-wait 30000 <<<
RP/0/RP0/CPU0:R2(config-isis-af)#commit

9th. SR微环避免 – 链路UP场景

在R8,R1,R2和R7上开启SR微环避免,LSP 延迟更新不去掉。当我们把R2和R4的link打开后到收敛前,没有任何业务影响,因为流量走正常路径,我们来看下收敛的情况

RP/0/RP0/CPU0:R2(config)#int  gi0/0/0/2
RP/0/RP0/CPU0:R2(config-if)#no shut
RP/0/RP0/CPU0:R2(config-if)#commit
Wed Mar 11 07:11:07.631 UTC   <<<

另外当R2的link up后,虽然路由没更新,但Adj-SID会立即分配

RP/0/RP0/CPU0:R2#sh mpls forwarding prefix 192.168.0.4/32 detail
Wed Mar 11 07:11:12.563 UTC
Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
16004  16004       SR Pfx (idx 4)     Gi0/0/0/0    12.1.1.1        0
     Updated: Mar 11 07:09:25.567
     Version: 1084, Priority: 1
     Label Stack (Top -> Bottom): { 16004 }
     NHID: 0x0, Encap-ID: N/A, Path idx: 0, Backup path idx: 0, Weight: 0
     MAC/Encaps: 4/8, MTU: 1500
     Outgoing Interface: GigabitEthernet0/0/0/0 (ifhandle 0x01000018)
     Packets Switched: 0

  Traffic-Matrix Packets/Bytes Switched: 0/0
RP/0/RP0/CPU0:R2#sh mpls forwarding prefix 192.168.0.2/32 detail
Wed Mar 11 07:11:12.937 UTC
RP/0/RP0/CPU0:R2#sh mpls forwarding labels 24003 deta
Wed Mar 11 07:11:13.223 UTC
Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
24003  Pop         SR Adj (idx 3)     Gi0/0/0/2    24.1.1.4        0     <<<
     Updated: Mar 11 07:11:07.928
     Version: 1185, Priority: 1
     Label Stack (Top -> Bottom): { Imp-Null }
     NHID: 0x0, Encap-ID: N/A, Path idx: 0, Backup path idx: 0, Weight: 0
     MAC/Encaps: 4/4, MTU: 1500
     Outgoing Interface: GigabitEthernet0/0/0/2 (ifhandle 0x01000028)
     Packets Switched: 0

我们来看R8,大约10s(22-7-6)后学到新的路由,符合设置的更新延迟,然后安装auto tunnel <16002, 24003>,这样直接规避了微环路,流量从R8去往R4的流量都会打上auto tunnel的SR标签,并得以保护

RP/0/RP0/CPU0:R8#sh isis | i "Microloop|RIB|State"
Wed Mar 11 07:11:22.335 UTC
        Microloop avoidance: Enabled
          Configuration: Type: Segment routing, RIB update delay: 40000 msec
          State: Active, Duration: 5810 ms, Event Link up, Near: R2.00 Far: R4.00
RP/0/RP0/CPU0:R8#sh route 192.168.0.4/32 det
Wed Mar 11 07:11:22.617 UTC  <<<

Routing entry for 192.168.0.4/32
  Known via "isis srte", distance 115, metric 30, labeled SR, type level-2
  Installed Mar 11 07:11:16.811 for 00:00:06  <<<
  Routing Descriptor Blocks
    directly connected, via tunnel-te32794
      Route metric is 30
      Label: 0x3 (3)
      Tunnel ID: None
      Binding Label: None
      Extended communities count: 0
      Path id:1       Path ref count:0
      NHID:0x0(Ref:0)
  Route version is 0x95 (149)
  Local Label: 0x3e84 (16004)
......
RP/0/RP0/CPU0:R8#sh isis route 192.168.0.4/32 det
Wed Mar 11 07:11:22.981 UTC

L2 192.168.0.4/32 [30/115] Label: 16004, medium priority
     via 18.1.1.1, GigabitEthernet0/0/0/3, R1, SRGB Base: 16000, Weight: 0
     exp 18.1.1.1, GigabitEthernet0/0/0/3, R1, SRGB Base: 16000, Weight: 0
       via tunnel tunnel-te32794
         P node: R2.00 [192.168.0.2], Label: 16002
         Q node: R4.00 [192.168.0.4], Label: 24003
     src R4.00-00, 192.168.0.4, prefix-SID index 4, R:0 N:1 P:0 E:0 V:0 L:0,
         Alg:0, prefix-SID index 804, R:0 N:1 P:0 E:0 V:0 L:0, Alg:128
RP/0/RP0/CPU0:R8#sh isis fast-reroute tunnel
Wed Mar 11 07:11:23.202 UTC

IS-IS srte SRTE backup tunnels

tunnel-te32794, state up, type primary-uloop
  Outgoing interface: GigabitEthernet0/0/0/3
  Next hop: 18.1.1.1
  Label stack: 16002, 24003
  Prefix: 192.168.0.4/32

tunnel-te32793, state up, type primary-uloop
  Outgoing interface: GigabitEthernet0/0/0/2
  Next hop: 78.1.1.7
  Label stack: 16804, 24004

RP/0/RP0/CPU0:R8#sh mpls forwarding prefix 192.168.0.4/32 detail
Wed Mar 11 07:11:23.781 UTC
Local  Outgoing    Prefix             Outgoing     Next Hop        Bytes
Label  Label       or ID              Interface                    Switched
------ ----------- ------------------ ------------ --------------- ------------
16004  Pop         SR Pfx (idx 4)     tt32794      point2point     0
     Updated: Mar 11 07:11:16.818
     Version: 928, Priority: 1
     Label Stack (Top -> Bottom): { Unlabelled Imp-Null }
     NHID: 0x0, Encap-ID: N/A, Path idx: 0, Backup path idx: 0, Weight: 0
     MAC/Encaps: 0/0, MTU: 0
     Outgoing Interface: tunnel-te32794 (ifhandle 0x000000fc) <<<
     Packets Switched: 0

  Traffic-Matrix Packets/Bytes Switched: 0/0

总结

因此通过Ti-LFA + 微环避免机制,可以有效地避免微环路带来的业务影响,大大提升用户体验;对于微环避免机制的delay,可以根据现网最大的收敛时间来设定;另外部署常规保护机制,如端口抖动抑制机制(damping)等。还要注意的就是不管是Ti-LFA还是微环避免,都是针对单点故障。

2+
你可以留言,或者trackback 从你的网站

留言哦

blonde teen swallows load.xxx videos
