最近研究了一下Netflow,发现这东西还是很不错的。建议如果流量异常有问题或负载分担问题,直接让客户配上monitor,不用配置exporter,直接看cache里的内容就可以了。Netflow里面有些迷惑的地方,这回整个测试了下,发现这东西还是比较有意思的。

2013-10-14: ASR9K NetFlow White Paper
https://supportforums.cisco.com/docs/DOC-36434

1. Template:

在v9的版本中,引进了template这个概念,这个东西感觉像个索引,告诉网管netflow的架构,默认export时间为1800s,也就是30mi,在抓netflow报文时,如果没有抓下template,那么你会发现通过wireshark无法解开cflow的报文,你也就没发分析了。另外template分两种,一种是正常的数据flow,另一种是option的flow,这就带来了强大的扩展。在下面的信息里,我把template的timeout改成了10s,cache timeout没改,所以你发现短时间内没有抓到任何flow流量:

RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 08:02:27.314 UTC
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (29117)
Flows exported:                                   0 (0 bytes)
>>> 刚开始为空
Flows dropped:                                    0 (0 bytes)

Templates exported:                               7 (644 bytes)
>>> 数据template已经exported 7个,对应Flows exported
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
>>> 刚开始为空
Option data dropped:                              0 (0 bytes)

Option templates exported:                       14 (392 bytes)
>>> Option template已经exported 14个,对应Option data exported
Option templates dropped:                         0 (0 bytes)

Packets exported:                                21 (1036 bytes)
Packets dropped:                                  0 (0 bytes)

Total export over last interval of:
  1 hour:                                        18 pkts
                                                888 bytes
                                                  0 flows
  1 minute:                                      18 pkts
                                                888 bytes
                                                  0 flows
  1 second:                                       0 pkts
                                                  0 bytes
                                                  0 flows

RP/0/RSP0/CPU0:ios#sh flow exporter-map test
Wed Jul 24 11:28:59.354 UTC

Flow Exporter Map : test
-------------------------------------------------
Id                 : 1
DestinationIpAddr   : 12.1.1.1
SourceIfName        : Loopback0
SourceIpAddr        : 123.123.123.123
DSCP                : 0
TransportProtocol   : UDP
TransportDestPort   : 9995

Export Version: 9
  Common Template Timeout : 10 seconds
  Options Template Timeout : 10 seconds
  Data Template Timeout : 10 seconds
  Interface-Table Export Timeout : 0 seconds
  Sampler-Table Export Timeout : 0 seconds

RP/0/RSP0/CPU0:ios#show flow monitor-map test-monitor
Wed Jul 24 11:31:12.103 UTC

Flow Monitor Map : test-monitor
-------------------------------------------------
Id:                1
RecordMapName:     ipv4-raw
ExportMapName:     test
CacheAgingMode:    Normal
CacheMaxEntries:   1000000
CacheActiveTout:   1800 seconds
CacheInactiveTout: 15 seconds
CacheUpdateTout:   N/A

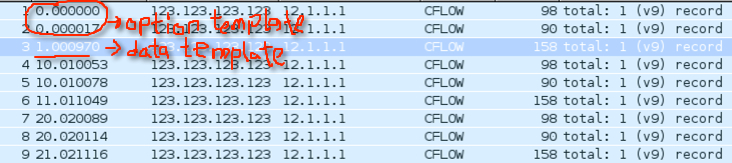

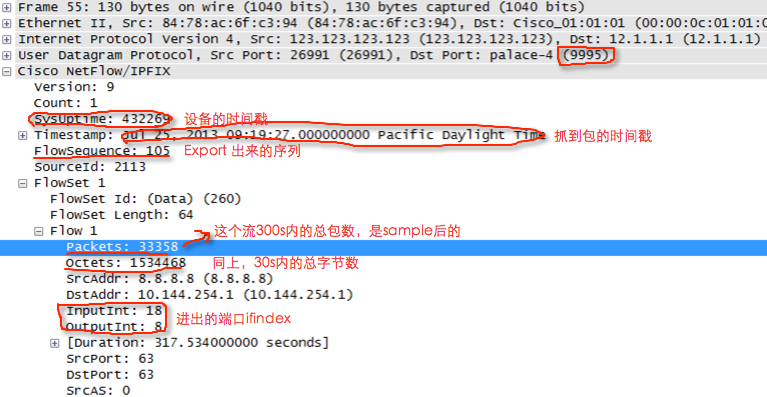

详细请看附件 “flow-test-1.pcap”

2. Export timeout:

在Netflow中,有多个export的时间点。
当流是active的时候,到达ActiveTimeout,就会把现有cache中这些active的数据组成UDP并发送出去,默认30mi;
当流是inactive的时候(就是在设备上没有这个流的任何数据包了),到达InactiveTimeout,就会把这些inactive的数据包组成UDP发送出去,默认15s,这个很快,所以如果遇到间接性的攻击流时,很难去cache中发现问题flow。

>>>>>>>>> 测试Inactive Timeout <<<<<<<<<

RP/0/RSP0/CPU0:ios#show flow monitor test-monitor cache brief location 0/2/cpu0
Wed Jul 24 11:36:53.723 UTC
Cache summary for Flow Monitor test-monitor:
Cache size:                        1000000
Current entries:                         0
High Watermark:                     950000
Flows added:                             8
Flows not added:                         0
Ager Polls:                          12919
  - Active timeout                       7
  - Inactive timeout                     1
  - TCP FIN flag                         0
  - Watermark aged                       0
  - Emergency aged                       0
  - Counter wrap aged                    0
  - Total                                8
Periodic export:
  - Counter wrap                         0
  - TCP FIN flag                         0
Flows exported                           8

Matching entries:                        0  >>>现在没有流量

RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 11:37:08.309 UTC
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (29117)
Flows exported:                                   8 (456 bytes)
>>>做测试时没有清掉,所以是8
Flows dropped:                                    0 (0 bytes)

Templates exported:                            1295 (119140 bytes)
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
Option data dropped:                              0 (0 bytes)

Option templates exported:                     2588 (72464 bytes)
Option templates dropped:                         0 (0 bytes)

Packets exported:                              3891 (192572 bytes)
Packets dropped:                                  0 (0 bytes)

**************************开始打流量*****************************

RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 11:37:11.493 UTC
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (29117)
Flows exported:                                   8 (456 bytes)
>>> 没有变化
Flows dropped:                                    0 (0 bytes)

Templates exported:                            1296 (119232 bytes)
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
Option data dropped:                              0 (0 bytes)

Option templates exported:                     2588 (72464 bytes)
Option templates dropped:                         0 (0 bytes)

Packets exported:                              3891 (192572 bytes)
Packets dropped:                                  0 (0 bytes)

RP/0/RSP0/CPU0:ios#show flow monitor test-monitor cache brief location 0/2/cpu0
Wed Jul 24 11:37:15.053 UTC
Cache summary for Flow Monitor test-monitor:
Cache size:                        1000000
Current entries:                         1
High Watermark:                     950000
Flows added:                             9
Flows not added:                         0
Ager Polls:                          12940
  - Active timeout                       7
  - Inactive timeout                     1
  - TCP FIN flag                         0
  - Watermark aged                       0
  - Emergency aged                       0
  - Counter wrap aged                    0
  - Total                                8
Periodic export:
  - Counter wrap                         0
  - TCP FIN flag                         0
Flows exported                           8

IPV4SrcAddr      IPV4DstAddr      L4SrcPort  L4DestPort IPV4Prot IPV4TOS  InputInterface  ForwardStatus        ByteCount    PacketCount  Dir
8.8.8.8          10.144.254.1     63         63         udp      0        Gi0/2/0/10      Fwd                  21870        135          Ing

Matching entries:                        1  <<< 在cache里已经能看到了

**************************停止打流量*****************************

RP/0/RSP0/CPU0:ios#show flow monitor test-monitor cache brief location 0/2/cpu0
Wed Jul 24 11:37:22.749 UTC
Cache summary for Flow Monitor test-monitor:
Cache size:                        1000000
Current entries:                         1
High Watermark:                     950000
Flows added:                             9
Flows not added:                         0
Ager Polls:                          12948
  - Active timeout                       7
  - Inactive timeout                     1
  - TCP FIN flag                         0
  - Watermark aged                       0
  - Emergency aged                       0
  - Counter wrap aged                    0
  - Total                                8
Periodic export:
  - Counter wrap                         0
  - TCP FIN flag                         0
Flows exported                           8

IPV4SrcAddr      IPV4DstAddr      L4SrcPort  L4DestPort IPV4Prot IPV4TOS  InputInterface  ForwardStatus        ByteCount    PacketCount  Dir
8.8.8.8          10.144.254.1     63         63         udp      0        Gi0/2/0/10      Fwd                  31914        197          Ing

Matching entries:                        1  <<< 还存在
RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 11:37:26.684 UTC
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (29117)
Flows exported:                                   8 (456 bytes)
>>>仍然没变
Flows dropped:                                    0 (0 bytes)

Templates exported:                            1297 (119324 bytes)
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
Option data dropped:                              0 (0 bytes)

Option templates exported:                     2592 (72576 bytes)
Option templates dropped:                         0 (0 bytes)

Packets exported:                              3897 (192868 bytes)
Packets dropped:                                  0 (0 bytes)

RP/0/RSP0/CPU0:ios#show flow monitor test-monitor cache brief location 0/2/cpu0
Wed Jul 24 11:37:32.666 UTC
Cache summary for Flow Monitor test-monitor:
Cache size:                        1000000
Current entries:                         1
High Watermark:                     950000
Flows added:                             9
Flows not added:                         0
Ager Polls:                          12957
  - Active timeout                       7
  - Inactive timeout                     1
  - TCP FIN flag                         0
  - Watermark aged                       0
  - Emergency aged                       0
  - Counter wrap aged                    0
  - Total                                8
Periodic export:
  - Counter wrap                         0
  - TCP FIN flag                         0
Flows exported                           8

IPV4SrcAddr      IPV4DstAddr      L4SrcPort  L4DestPort IPV4Prot IPV4TOS  InputInterface  ForwardStatus        ByteCount    PacketCount  Dir
8.8.8.8          10.144.254.1     63         63         udp      0        Gi0/2/0/10      Fwd                  34020        210          Ing

Matching entries:                        1
RP/0/RSP0/CPU0:ios#show flow monitor test-monitor cache brief location 0/2/cpu0
Wed Jul 24 11:37:35.756 UTC
Cache summary for Flow Monitor test-monitor:
Cache size:                        1000000
Current entries:                         0
High Watermark:                     950000
Flows added:                             9
Flows not added:                         0
Ager Polls:                          12961
  - Active timeout                       7
  - Inactive timeout                     2
  - TCP FIN flag                         0
  - Watermark aged                       0
  - Emergency aged                       0
  - Counter wrap aged                    0
  - Total                                9
Periodic export:
  - Counter wrap                         0
  - TCP FIN flag                         0
Flows exported                           9

Matching entries:                        0  >>> 被clear了,去看下export信息

RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 11:37:38.797 UTC
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (29117)
Flows exported:                                   9 (513 bytes)
>>> 增加到9了
Flows dropped:                                    0 (0 bytes)

Templates exported:                            1299 (119508 bytes)
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
Option data dropped:                              0 (0 bytes)

Option templates exported:                     2594 (72632 bytes)
Option templates dropped:                         0 (0 bytes)

Packets exported:                              3902 (193229 bytes)
Packets dropped:                                  0 (0 bytes)

>>>>>>>>> 测试Active Timeout <<<<<<<<<

RP/0/RSP0/CPU0:ios#config ter
Wed Jul 24 11:45:34.523 UTC
RP/0/RSP0/CPU0:ios(config)#flow monitor-map test-monitor
RP/0/RSP0/CPU0:ios(config-fmm)#cache ?
  entries    Specify the number of entries in the flow cache
  permanent  Disable removal of entries from flow cache
  timeout    Specify the flow cache timeouts
RP/0/RSP0/CPU0:ios(config-fmm)#cache timeout ?
  active    Specify the active flow timeout
  inactive  Specify the inactive flow timeout
  update    Specify the update timeout
RP/0/RSP0/CPU0:ios(config-fmm)#cache timeout active 30
RP/0/RSP0/CPU0:ios(config-fmm)#commit
Wed Jul 24 11:47:20.443 UTC
RP/0/RSP0/CPU0:ios(config-fmm)#end
RP/0/RSP0/CPU0:ios#
RP/0/RSP0/CPU0:ios#sh run int g0/2/0/10
Wed Jul 24 11:47:35.958 UTC
interface GigabitEthernet0/2/0/10
 ipv4 address 33.33.33.1 255.255.255.0
 negotiation auto
 load-interval 30
 flow ipv4 monitor test-monitor sampler 1-1000 ingress
!

RP/0/RSP0/CPU0:ios#config ter
Wed Jul 24 11:47:37.483 UTC
RP/0/RSP0/CPU0:ios(config)#int g0/2/0/10
RP/0/RSP0/CPU0:ios(config-if)#no flow ipv4 monitor test-monitor sampler 1-1000 ingress
RP/0/RSP0/CPU0:ios(config-if)#commit
Wed Jul 24 11:47:50.972 UTC
RP/0/RSP0/CPU0:ios(config-if)#do sh flow monitor-map test-monitor
Wed Jul 24 11:48:29.900 UTC

Flow Monitor Map : test-monitor
-------------------------------------------------
Id:                1
RecordMapName:     ipv4-raw
ExportMapName:     test
CacheAgingMode:    Normal
CacheMaxEntries:   1000000
CacheActiveTout:   30 seconds   >>>已经改了
CacheInactiveTout: 15 seconds
CacheUpdateTout:   N/A
RP/0/RSP0/CPU0:ios(config-if)#flow ipv4 monitor test-monitor sampler 1-1000 ingress
RP/0/RSP0/CPU0:ios(config-if)#commit
Wed Jul 24 11:48:47.966 UTC  >>>开始计时
RP/0/RSP0/CPU0:ios(config-if)#end
RP/0/RSP0/CPU0:ios#
RP/0/RSP0/CPU0:ios#

RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 11:49:22.123 UTC  >>> 大概过了35s
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (30838)
Flows exported:                                   1 (57 bytes)
>>>已经被export出去了
Flows dropped:                                    0 (0 bytes)

Templates exported:                               5 (460 bytes)
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
Option data dropped:                              0 (0 bytes)

Option templates exported:                        8 (224 bytes)
Option templates dropped:                         0 (0 bytes)

Packets exported:                                14 (805 bytes)
Packets dropped:                                  0 (0 bytes)

Total export over last interval of:
  1 hour:                                         0 pkts
                                                  0 bytes
                                                  0 flows
  1 minute:                                      14 pkts
                                                748 bytes
                                                  1 flows
  1 second:                                       2 pkts
                                                156 bytes
                                                  1 flows

RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 11:49:53.291 UTC  >>> 大概又过了30s
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (30838)
Flows exported:                                   2 (114 bytes)
>>>已经被export出去了
Flows dropped:                                    0 (0 bytes)

Templates exported:                               8 (736 bytes)
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
Option data dropped:                              0 (0 bytes)

Option templates exported:                       14 (392 bytes)
Option templates dropped:                         0 (0 bytes)

Packets exported:                                24 (1370 bytes)
Packets dropped:                                  0 (0 bytes)

>> 再次抓包,并在端口上初始化flow配置,确认template和正常的cflow信息 <<
抓包信息请看: “flow-test-2.pcap”

RP/0/RSP0/CPU0:ios#show flow exporter test location 0/2/cpu0
Wed Jul 24 12:10:10.049 UTC
Flow Exporter: test
Flow Exporter memory usage: 3280868
Used by flow monitors: test-monitor

Status: Normal
Transport   UDP
Destination 12.1.1.1        (9995)      VRF default
Source      123.123.123.123 (381)
Flows exported:                                   3 (171 bytes)
>>> 跟抓包信息对应
Flows dropped:                                    0 (0 bytes)

Templates exported:                              15 (1380 bytes)
>>> 跟抓包信息对应
Templates dropped:                                0 (0 bytes)

Option data exported:                             0 (0 bytes)
>>> 可以看到只有option的templates,没有option的data
Option data dropped:                              0 (0 bytes)

Option templates exported:                       26 (728 bytes)
Option templates dropped:                         0 (0 bytes)

Packets exported:                                43 (2379 bytes)
Packets dropped:                                  0 (0 bytes)

Total export over last interval of:
  1 hour:                                        41 pkts
                                               2152 bytes
                                                  3 flows
  1 minute:                                      20 pkts
                                               1044 bytes
                                                  1 flows
  1 second:                                       0 pkts
                                                  0 bytes
                                                  0 flows

P/0/RSP0/CPU0:ios#show flow monitor-map test-monitor
Wed Jul 24 12:14:55.437 UTC

Flow Monitor Map : test-monitor
-------------------------------------------------
Id:                1
RecordMapName:     ipv4-raw
ExportMapName:     test
CacheAgingMode:    Normal
CacheMaxEntries:   1000000
CacheActiveTout:   30 seconds
CacheInactiveTout: 15 seconds
CacheUpdateTout:   N/A
RP/0/RSP0/CPU0:ios#show flow exporter-map test
Wed Jul 24 12:15:07.023 UTC

Flow Exporter Map : test
-------------------------------------------------
Id                 : 1
DestinationIpAddr   : 12.1.1.1
SourceIfName        : Loopback0
SourceIpAddr        : 123.123.123.123
DSCP                : 0
TransportProtocol   : UDP
TransportDestPort   : 9995

Export Version: 9
  Common Template Timeout : 10 seconds
  Options Template Timeout : 10 seconds
  Data Template Timeout : 10 seconds
  Interface-Table Export Timeout : 0 seconds
  Sampler-Table Export Timeout : 0 seconds

3. Cache中的flow

当在端口配上“flow ipv4 monitor xxx sampler xxx ingress”时,就会激活netflow,进来的数据包会首先进到flow cache中,这个cache可以更改,最大1000000个条目。这里面的每个条目在被export出去之前都是累加的,例如在下面的信息中,我用了sample 1/1000。

RP/0/RSP0/CPU0:ios#sh flow monitor test-monitor cache location 0/2/cpu0
Thu Jul 25 16:43:29.250 UTC
Cache summary for Flow Monitor test-monitor:
Cache size:                        1000000
Current entries:                         1
High Watermark:                     950000
Flows added:                             7
Flows not added:                         0
Ager Polls:                           1776
  - Active timeout                       5
  - Inactive timeout                     1
  - TCP FIN flag                         0
  - Watermark aged                       0
  - Emergency aged                       0
  - Counter wrap aged                    0
  - Total                                6
Periodic export:
  - Counter wrap                         0
  - TCP FIN flag                         0
Flows exported                           6

IPV4SrcAddr      IPV4DstAddr      L4SrcPort  L4DestPort BGPDstOrigAS BGPSrcOrigAS BGPNextHopV4
IPV4DstPrfxLen  IPV4SrcPrfxLen  IPV4Prot IPV4TOS  InputInterface  OutputInterface
L4TCPFlags   ForwardStatus        FirstSwitched   LastSwitched
ByteCount    PacketCount  Dir SamplerID
8.8.8.8          10.144.254.1     63         63         0            0            0.0.0.0
24              0               udp      0        Gi0/2/0/10      Gi0/2/0/0
0            Fwd                  00 00:27:24:562 00 00:31:09:544
1034954      22499        Ing 1

Matching entries:                        1

在这里可以看到,22499是累计值,就像我上面说的,他会一直累积到Timeout并Export,另外这也是sample后的数据包个数,所以此时真实的数据包大概应该有22499000,但你可能会发现这个数值跟端口的 packets input计数不一样,即使同时clear端口和flow,也不一样,而且差很多。端口数据和netflow的数据应该是通过不同方式获得的,所以可能会有些延时差异。

2018-1-12: Netflow USe CASE in TS
1. 如果点到点ping不同,完全丢包,中间又是MPLS环境,我们如何确认报文到了哪里了?这时可以通过netflow来检测MPLS报文中的内容,如TOS,SRC/DST Address等
2. 如果有攻击流量,可以也可以通过netflow找出来,可以看我最新更新的博文:asr9k netflow and qos order in the inbound direction

4. 如何通过netflow信息绘图

例如下面的,ActiveTimout是300s,实际是317s,所以此流的平均数据包为33358000/317s = 105230 PPS,这个数也大致等于端口的100k PPS。
对于字节数,可以通过 (1534468 * 8)/300s = 40919147bits/sec,大致等于端口统计的48Mbits/sec。
对于这个平均值要打上什么时间,可以是flow的start时间,也可以是flow的end时间,只要统一就ok。
这样一个点就绘出来了,在lab我只打了1条流,如果多个流存在,要把所有流加起来求平均值,这样就可以计算出端口总共的带宽。

另外默认netflow不计算2层包头,所以如果打64byte的小包,而且流量很大,那么统计出来的结果会差很多,因为每个包用于计算的大小只有64-14=50byte。

RP/0/RSP0/CPU0:ios#sh int g0/2/0/10 | i input
Thu Jul 25 16:31:20.059 UTC
  output flow control is off, input flow control is off
  Last input 00:00:00, output 00:17:08
  30 second input rate 48000000 bits/sec, 100000 packets/sec
     105600753 packets input, 6336051711 bytes, 0 total input drops
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

flow monitor-map test
 record ipv4
 cache entries 1000000
!
sampler-map 1-1000
 random 1 out-of 1000

Int x/x/x/x
flow ipv4 monitor test sampler 1-1000 ingress

show flow monitor test cache format record match ipv4 protocol eq tcp location x/x/cpu0

抓包附件:
flow-test-1/2-check-blog

本文出自 Frank's Blog

版权声明:


本文链接:Netflow V9
版权声明:本文为原创文章,仅代表个人观点,版权归 Frank Zhao 所有,转载时请注明本文出处及文章链接
你可以留言,或者trackback 从你的网站

13 Responses to “Netflow V9”

  1. cosme说道:

    你好 我也正在研究netflow 但是手边没有支持的路由器 你是用的虚拟机吗?我该怎么办?您的那个数据包的附件在哪啊?没找到下载的地方 我想看看 能否发到我的邮箱yangguanyu_2006@126.com 谢谢

    0
  2. cosme说道:

    最近也在研究netflow 但是支持v9的模拟器好像没有呢 不知到博主怎么弄的。您的附件怎么下载啊!能否发到邮箱yangguanyu_2006@126.com 谢谢

    0
  3. yang说道:

    请问能把那两个cap包发到我的邮箱吗?yangguanyu_2006@126.com

    0
  4. frank说道:

    已经给你发了,我用的是真实设备做的。

    0
  5. xyz说道:

    请问能把那两个cap包发到我的邮箱吗?我最近也在看v9这个,但是没有实际的包,472379896@qq.com

    0
  6. mycat说道:

    Frank,您好。你能把附件cap包给我发一下吗?邮箱地址:jiang_nh@qq.com.
    谢谢!

    0
  7. frank说道:

    Hi, All

    新的Wordpress支持上传附件,我已经更新了此文章,你们可以直接下载文章后附上的zip包,里面包含两个抓包文件

    0
  8. mycat说道:

    Dear Frank,

    非常谢谢!

    0
  9. mast说道:

    你好 请问为什么那个zip包里的东西我用wireshark打开是UDP报文呢

    0
  10. frank说道:

    wireshark默认是UDP,你需要自己手动把他decode下,方式是选择”分析” -> “decode as” -> 选择UDP的端口号 -> current选择“CFLOW”就可以了

    0
  11. 波波说道:

    楼主你好:
    我最近在研究netflow,但是网上没有资料比较少,不知道楼主能不能私底下叫流一下。

    谢谢

    0
  12. frank说道:

    我netflow研究的也不深,皮毛而已,如果有问题,可以发到这里一起讨论下

    0
  13. […] 然后又发现抓下来的包,no template found,又根据这两篇解决:Wireshark needs templates to decipher Cisco NetFlow v9 和 Netflow V9 […]

    0

留言哦

blonde teen swallows load.xxx videos
