K8s – Traefik-Ingress
14 8 月, 2022,由 frank撰写
coreDNS实现了服务在集群内被自动发现，那么如何实现服务在集群外被自动发现呢？这里有两种方法，这里只关注Ingress资源：
- 使用nodeport service，在这种方法中，kube-proxy只能使用iptables模型，不能使用ipvs模型；
- 使用Ingress资源，只能调度并暴露7层应用，特质http或https；
常用的Ingress控制器主要有以下几种，这里使用traefik：
- Ingress-nginx
- HAProxy
- Traefik
注意：ingress资源和ingress控制器不是一个东西（具体可以看最下面的流程图）：
- ingress资源：专用于暴露7层应用（http/https）到k8s集群外的一种核心资源；
- ingress控制器：简化版本的nginx（调度流量）+go脚本（动态识别yaml，主要用于监控ingress配置清单的变化以做出应对），traefik就是其中之一；
安装部署Traefik
上传Traefik的Image
root@f0-15:/data/k8s-yaml# docker pull traefik:v1.7.2-alpine
v1.7.2-alpine: Pulling from library/traefik
4fe2ade4980c: Pull complete
8d9593d002f4: Pull complete
5d09ab10efbd: Pull complete
37b796c58adc: Pull complete
Digest: sha256:cf30141936f73599e1a46355592d08c88d74bd291f05104fe11a8bcce447c044
Status: Downloaded newer image for traefik:v1.7.2-alpine
docker.io/library/traefik:v1.7.2-alpine
root@f0-15:/data/k8s-yaml# docker images|grep traefik
traefik v1.7.2-alpine add5fac61ae5 3 years ago 72.4MB
root@f0-15:/data/k8s-yaml# docker tag add5fac61ae5 harbor.frank.com/public/traefik:v1.7.2
root@f0-15:/data/k8s-yaml# docker push !$
docker push harbor.frank.com/public/traefik:v1.7.2
The push refers to repository [harbor.frank.com/public/traefik]
a02beb48577f: Pushed
ca22117205f4: Pushed
3563c211d861: Pushed
df64d3292fd6: Pushed
v1.7.2: digest: sha256:6115155b261707b642341b065cd3fac2b546559ba035d0262650b3b3bbdd10ea size: 1157资源配置清单
root@f0-15:/data/k8s-yaml# mkdir traefikRBAC
root@f0-15:/data/k8s-yaml/traefik# more rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: traefik-ingress-controller
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
name: traefik-ingress-controller
rules:
- apiGroups:
- ""
resources:
- services
- endpoints
- secrets
verbs:
- get
- list
- watch
- apiGroups:
- extensions
resources:
- ingresses
verbs:
- get
- list
- watch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: traefik-ingress-controller
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
name: traefik-ingress-controller
namespace: kube-systemDaemonSet
为什么这里不用Deployment？DaemonSet控制器需要在每一个节点都启动一个；
kubernetes.endpoint 就是之前设置的VIP地址；监控宿主机的81端口；
root@f0-15:/data/k8s-yaml/traefik# more ds.yaml
apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
name: traefik-ingress
namespace: kube-system
labels:
k8s-app: traefik-ingress
spec:
template:
metadata:
labels:
k8s-app: traefik-ingress
name: traefik-ingress
spec:
serviceAccountName: traefik-ingress-controller
terminationGracePeriodSeconds: 60
containers:
- image: harbor.frank.com/public/traefik:v1.7.2
name: traefik-ingress
ports:
- name: controller
containerPort: 80
hostPort: 81
- name: admin-web
containerPort: 8080
securityContext:
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
args:
- --api
- --kubernetes
- --logLevel=INFO
- --insecureskipverify=true
- --kubernetes.endpoint=https://172.20.0.18:7777
- --accesslog
- --accesslog.filepath=/var/log/traefik_access.log
- --traefiklog
- --traefiklog.filepath=/var/log/traefik.log
- --metrics.prometheusIngress
这个域名应该是跟VIP地址对应的；
规则的意思就是访问该域名根目录下的服务traefik-ingress-service+8080；
root@f0-15:/data/k8s-yaml/traefik# more ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: traefik-web-ui
namespace: kube-system
annotations:
kubernetes.io/ingress.class: traefik
spec:
rules:
- host: traefik.frank.com
http:
paths:
- path: /
backend:
serviceName: traefik-ingress-service
servicePort: 8080Service
root@f0-15:/data/k8s-yaml/traefik# more svc.yaml
kind: Service
apiVersion: v1
metadata:
name: traefik-ingress-service
namespace: kube-system
spec:
selector:
k8s-app: traefik-ingress
ports:
- protocol: TCP
port: 80
name: controller
- protocol: TCP
port: 8080
name: admin-web部署Traefik
root@f0-13:~# kubectl apply -f http://k8s-yaml.frank.com/traefik/rbac.yaml
serviceaccount/traefik-ingress-controller created
clusterrole.rbac.authorization.k8s.io/traefik-ingress-controller created
clusterrolebinding.rbac.authorization.k8s.io/traefik-ingress-controller created
root@f0-13:~# kubectl apply -f http://k8s-yaml.frank.com/traefik/ds.yaml
daemonset.extensions/traefik-ingress created
root@f0-13:~# kubectl apply -f http://k8s-yaml.frank.com/traefik/svc.yaml
service/traefik-ingress-service created
root@f0-13:~# kubectl apply -f http://k8s-yaml.frank.com/traefik/ingress.yaml
ingress.extensions/traefik-web-ui created
root@f0-13:~#
root@f0-13:~# kubectl get all -n kube-system
NAME READY STATUS RESTARTS AGE
pod/coredns-684d79cc-55sst 1/1 Running 0 111m
pod/traefik-ingress-7zhbq 1/1 Running 0 5m10s
pod/traefik-ingress-x9g92 1/1 Running 0 5m10s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/coredns ClusterIP 10.254.0.2 <none> 53/UDP,53/TCP,9153/TCP 111m
service/traefik-ingress-service ClusterIP 10.254.176.139 <none> 80/TCP,8080/TCP 4m15s
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/traefik-ingress 2 2 2 2 2 <none> 5m10s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/coredns 1/1 1 1 111m
NAME DESIRED CURRENT READY AGE
replicaset.apps/coredns-684d79cc 1 1 1 111m可以看到自动部署了两个ingress，难道这就是用deamonset建立的原因，这两个ingress分别部署在两个pod里：
root@f0-13:~# kubectl get pods -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
coredns-684d79cc-55sst 1/1 Running 0 112m 172.1.13.4 f0-13.host.com <none> <none>
traefik-ingress-7zhbq 1/1 Running 0 6m21s 172.1.13.5 f0-13.host.com <none> <none>
traefik-ingress-x9g92 1/1 Running 0 6m21s 172.1.14.4 f0-14.host.com <none> <none>root@f0-13:~# ipvsadm -Ln |grep 10.254.176.139 -A 5
TCP 10.254.176.139:80 nq
-> 172.1.13.5:80 Masq 1 0 0
-> 172.1.14.4:80 Masq 1 0 0
TCP 10.254.176.139:8080 nq
-> 172.1.13.5:8080 Masq 1 0 0
-> 172.1.14.4:8080 Masq 1 0 0
UDP 10.254.0.2:53 nq
-> 172.1.13.4:53 Masq 1 0 0 注意：通过netstat是查看不到ipvs和iptable里开放的端口的，他们都是kernel的，而netstat查看的是应用程序暴露的端口：
root@f0-13:~# netstat -lntp|grep 8080
tcp 0 0 127.0.0.1:8080 0.0.0.0:* LISTEN 857/./kube-apiserve root@f0-13:~# kubectl exec -ti traefik-ingress-7zhbq /bin/sh -n kube-system
/ # netstat -luntp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 :::80 :::* LISTEN 1/traefik
tcp 0 0 :::8080 :::* LISTEN 1/traefik
/ # root@f0-13:~# netstat -luntp|grep 81
tcp 0 0 0.0.0.0:81 0.0.0.0:* LISTEN 393123/docker-proxy
tcp6 0 0 :::81 :::* LISTEN 393132/docker-proxy
root@f0-14:~# netstat -luntp|grep 81
tcp 0 0 0.0.0.0:81 0.0.0.0:* LISTEN 490198/docker-proxy
tcp6 0 0 :::81 :::* LISTEN 490204/docker-proxy 配置Nginx指向Ingress宿主机
所有访问”*.frank.com“的7层流量，都转给Ingress资源，让ingress资源去调度流量，这样Nginx上就不需要对7层转发做额外的配置了，需要在f0-11和f0-12上配置，只展示f0-11：
root@f0-11:~# more /etc/nginx/conf.d/frank.com.conf
upstream default_backend_traefik {
server 172.20.0.13:81 max_fails=3 fail_timeout=10s;
server 172.20.0.14:81 max_fails=3 fail_timeout=10s;
}
server {
server_name *.frank.com;
location / {
proxy_pass http://default_backend_traefik;
proxy_set_header Host $http_host;
proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
}
}root@f0-11:~# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
root@f0-11:~# systemctl restart nginx增加业务域名解析
root@f0-11:~# systemctl restart bind9
root@f0-11:~# more /etc/bind/db.frank.com |grep traefik -C 2
harbor A 172.20.0.15
k8s-yaml A 172.20.0.15
traefik A 172.20.0.18验证Traefik-Ingress

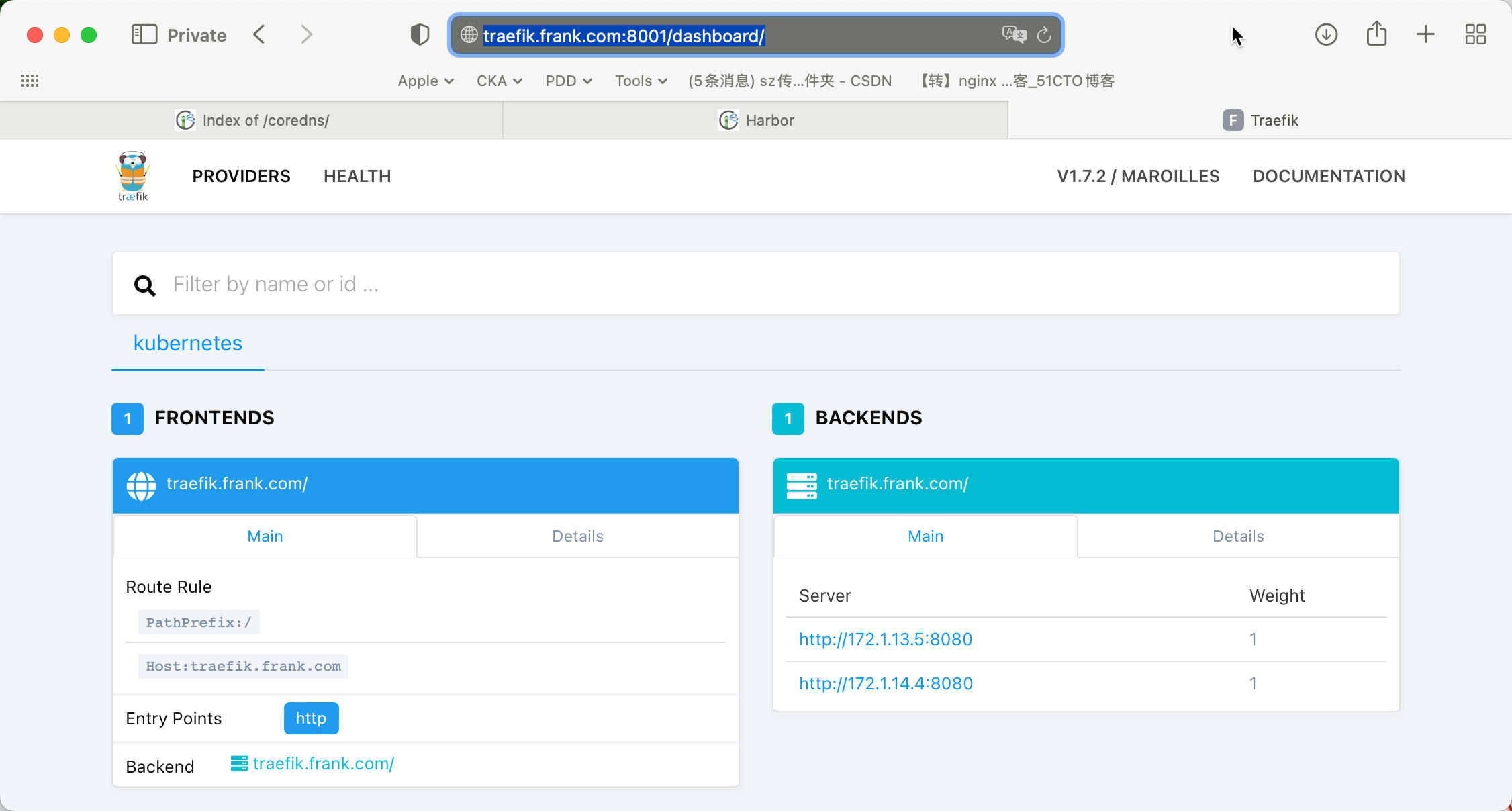

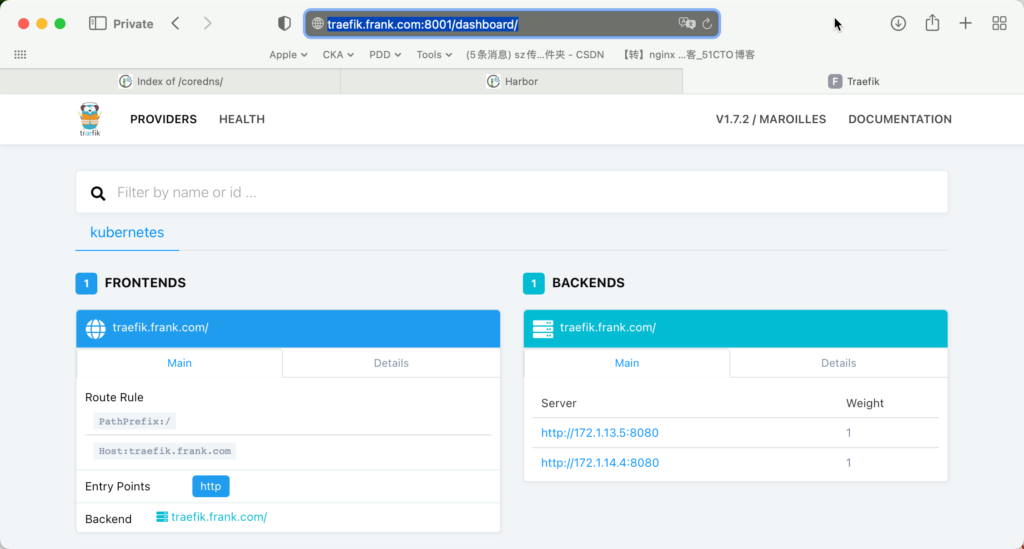

PS：8001是因为我从macOS通过ssh tunnel访问实验环境的；

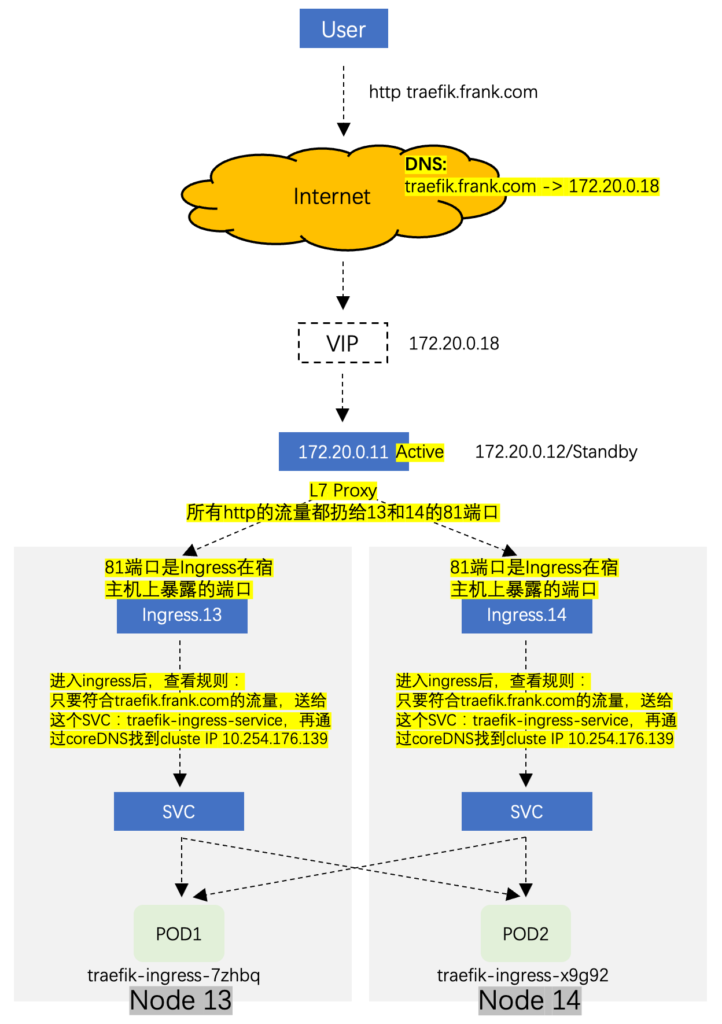

流程图
在理解ingress和ingress控制器时，因为考虑角度问题，我开始没弄的太清楚，所以总感觉很乱，比如：
- ingress控制器treafik在最下面的pod里，他是怎么调度流量的？跟下面的图不一致呀？
- traefik功能明明是在流量通过ingress进来后就发生作用了，但treafik在pod里，是怎么发挥的作用？
跟朋友讨论完后的理解：
- 首先要明确的是下面流程图是针对流量的，算是数据平面的流程图；
- 其次ingress 控制器treafik是作为资源以pod最小单元被部署在node节点上的，它本身就是服务；
- 最后不同的功能组件以及如何互通的，可以看做是控制平面，比如你搭了一个ssh服务，那么它会提供22端口给外面的流量使用，但本身是作为sshd驻留在内核中，那么treafik是类似的，它提供了在ingress和svc之间的流量调度能力，但它驻留在pod中；
