How to convert SPP into text2pcap readable format by python

Introduction

There are some internal tools that can decode SPP packets at former, but they are not work now. In some scenario, customer coudln’t do span on our asr9k, so we only need SPP, then will face to how to decode SPP result.

The article disscuss how to covert SPP original data to text2pcap readable format, then decode by text2pcap. You only do the script that can auto work. Btw, before do that, you need have python2.7 and text2pcap (integrate in wireshark). If you have python3.0 or newer, that maybe have some issue, because some function have a bit different, you need adjust them by yourself.

Solution

Original SPP data:

=~=~=~=~=~=~=~=~=~=~=~= PuTTY log 2017.12.04 17:12:19 =~=~=~=~=~=~=~=~=~=~=~=
trace p stop
Tracing stopped with 666 outstanding...
spp-ui> trace print
Packet serial 861
port4/classify:
  length 148 phys_int_index 0 next_ctx 0xdeadbeef time 09:10:41.407
  00: 00 70 72 00 00 08 00 65 7a 00 00 00 ff ff 00 07
  10: 80 30 00 00 00 00 0f 00 00 00 1f 00 00 00 00 00
  20: 00 70 05 f2 42 fb 00 00 04 00 01 40 07 01 05 27
  30: 06 03 0e 06 00 00 00 00 4c 00 00 00 00 00 58 00
  40: 00 00 00 00 00 00 06 01 00 a1 13 41 92 60 00 b2
  50: 64 41 8a 4c 08 00 45 c0 00 3e 00 00 00 00 fe 11
  60: c8 25 12 ac 79 0d 34 df d0 01 02 86 02 86 00 2a
  70: 75 5a 00 01 00 1e 3f da a4 0f 00 00 01 00 00 14
  80: 00 00 00 00 04 00 00 04 00 5a c0 00 04 01 00 04
  90: 3f da a4 0f 00 00 00 00 00 00 00 00 00 00 00 00
  a0: 00 00 00 17 00 08 05 01 00 00 af c8 00 24 14 01
  b0: 01 08 3f da d0 46 20 00 01 08 3f da d0 42 20 00
  c0: 01 08 3f da d0 41 20 00 01 08 3f da d0 07 20 00
  d0: 00 08 13 01 00 00 08 00 00 20 cf 07 00 00 07 16
  e0: 4d 50 4c 53 2d 54 45 20 74 6f 20 76 61 72 30 31
  f0: 2e 6b 6c 70 30 32 00 00 00 0c 0b 07 3f df 04 08
--------------------------

Python Scripts

import sys
import os
import re
import tempfile
from itertools import chain

# each packets 256 byte, fix size

lines = []
newlines = []
packets = []

if len(sys.argv) < 3 or len(sys.argv) > 4:
    sys.exit(1);
    # 1 = exception exit; 0 = normal exit

if len(sys.argv) > 3:
    offset = sys.argv[1]
    original_filename = sys.argv[2]
    pcap_name = sys.argv[3]

    print 'Offset: ' + offset
    print 'Original SPP DATA Name: '+ original_filename
    print 'New PCAP Name: ' + pcap_name

# original data:
'''
spp-ui> trace print
Packet serial 5
port4/classify:
  length 148 phys_int_index 0 next_ctx 0xdeadbeef time 04:31:10.294
  e0: 4d 50 4c 53 2d 54 45 20 74 6f 20 76 61 72 30 31
  f0: 2e 6b 6c 70 30 32 00 00 00 0c 0b 07 3f df 04 08
--------------------------
spp-ui> trace print
Packet serial 861
port4/classify:
  length 148 phys_int_index 0 next_ctx 0xdeadbeef time 09:10:41.407
  e0: 4d 50 4c 53 2d 54 45 20 74 6f 20 76 61 72 30 31
  f0: 2e 6b 6c 70 30 32 00 00 00 0c 0b 07 3f df 04 08
--------------------------
'''

f = open(original_filename)
for line in f.readlines():
    if re.search('[0-9a-f]0: ', line):
        lines.append(line.split()[1:])
f.close()
# lines data:
'''
[['4d', '50', '4c', '53', '2d', '54', '45', '20', '74', '6f', '20', '76', '61', '72', '30', '31'], ['2e', '6b', '6c', '70', '30', '32', '00', '00', '00', '0c', '0b', '07', '3f', 'df', '04', '08'], ['4d', '50', '4c', '53', '2d', '54', '45', '20', '74', '6f', '20', '76', '61', '72', '30', '31'], ['2e', '6b', '6c', '70', '30', '32', '00', '00', '00', '0c', '0b', '07', '3f', 'df', '04', '08']]
'''

newlines = list(chain(*lines))
# newlines data:
'''
['4d', '50', '4c', '53', '2d', '54', '45', '20', '74', '6f', '20', '76', '61', '72', '30', '31', '2e', '6b', '6c', '70', '30', '32', '00', '00', '00', '0c', '0b', '07', '3f', 'df', '04', '08', '4d', '50', '4c', '53', '2d', '54', '45', '20', '74', '6f', '20', '76', '61', '72', '30', '31', '2e', '6b', '6c', '70', '30', '32', '00', '00', '00', '0c', '0b', '07', '3f', 'df', '04', '08']
'''

for i in range(0,len(newlines),256):
    packets.append(newlines[(i + int(offset)):i+256])
# 0 to len(), step is 256
# equal with 'print newlines[0:256]' and 'print newlines[256:512]'
# packets data
# in the example, totally 32 each packets, but not 256, only show result, not change original script
'''
[['20', '76', '61', '72', '30', '31', '2e', '6b', '6c', '70', '30', '32', '00', '00', '00', '0c', '0b', '07', '3f', 'df', '04', '08'], ['20', '76', '61', '72', '30', '31', '2e', '6b', '6c', '70', '30', '32', '00', '00', '00', '0c', '0b', '07', '3f', 'df', '04', '08']]
'''

temp = tempfile.NamedTemporaryFile()
# use temporary file to save temp data

for d1 in packets:
# d1 is a list
    y=0
    for z in range(0,len(d1)):
        if (z + 1) % 16 == 0:
            print >> temp, d1[z]
        elif (z + 1) % 16 == 1:
            print >> temp, "00" + str(hex(y))[-1] + "0: " + d1[z],
            y = y+1
        else:
            print >> temp, d1[z],
    print >> temp, "\n"

temp.seek(0)
# put pointer to beginnng

cmd1= 'more '+ temp.name
cmd2 = 'text2pcap ' + temp.name + ' ' + pcap_name
os.system(cmd1)
os.system(cmd2)
# finally data:
'''
0000: 20 76 61 72 30 31 2e 6b 6c 70 30 32 00 00 00 0c
0010: 0b 07 3f df 04 08

0000: 20 76 61 72 30 31 2e 6b 6c 70 30 32 00 00 00 0c
0010: 0b 07 3f df 04 08
'''

Verified

Attention: Refer to offset data, you need find L2’s mac harder, then check number, as follow example, after offset 72, L2 header begins.

xxx-M-Q4TL:Desktop xxx$ python convert-spp-text2pcap-readable.py 72 spp-test-1.txt spp-test-1.pcap
Offset: 72
Original SPP DATA Name: spp-test-1.txt
New PCAP Name: spp-test-1.pcap
0000: 00 a1 13 41 92 60 00 b2 64 41 8a 4c 08 00 45 c0
0010: 00 3e 00 00 00 00 fe 11 c8 25 12 ac 79 0d 34 df
0020: d0 01 02 86 02 86 00 2a 75 5a 00 01 00 1e 3f da
0030: a4 0f 00 00 01 00 00 14 00 00 00 00 04 00 00 04
0040: 00 5a c0 00 04 01 00 04 3f da a4 0f 00 00 00 00
0050: 00 00 00 00 00 00 00 00 00 00 00 17 00 08 05 01
0060: 00 00 af c8 00 24 14 01 01 08 3f da d0 46 20 00
0070: 01 08 3f da d0 42 20 00 01 08 3f da d0 41 20 00
0080: 01 08 3f da d0 07 20 00 00 08 13 01 00 00 08 00
0090: 00 20 cf 07 00 00 07 16 4d 50 4c 53 2d 54 45 20
00a0: 74 6f 20 76 61 72 30 31 2e 6b 6c 70 30 32 00 00
00b0: 00 0c 0b 07 3f df 04 08

0000: 00 a1 13 41 92 60 00 b2 64 41 8a 4c 08 00 45 c0
0010: 00 3e 00 00 00 00 fe 11 c8 25 12 ac 79 0d 34 df
0020: d0 01 02 86 02 86 00 2a 75 5a 00 01 00 1e 3f da
0030: a4 0f 00 00 01 00 00 14 00 00 00 00 04 00 00 04
0040: 00 5a c0 00 04 01 00 04 3f da a4 0f 00 00 00 00
0050: 00 00 00 00 00 00 00 00 00 00 00 00 44 7a 00 00
0060: 00 00 00 00 00 00 00 00 00 00 11 76 00 0c 0a 07
0070: 3f da d0 08 00 00 09 19 00 08 10 01 00 00 78 00
0080: 01 04 15 01 01 08 3f da d0 05 20 20 03 08 01 01
0090: 00 00 78 00 01 08 3f da d0 45 20 00 03 08 01 01
00a0: 00 00 78 00 01 08 3f da d0 06 20 20 03 08 01 01
00b0: 00 00 7e 66 01 08 3f da

Input from: /var/folders/7y/8nvq5m_x1k9c7q9jbl7ysw1r0000gn/T/tmpwkQE7N
Output to: spp-test-1.pcap
Output format: PCAP
Wrote packet of 184 bytes.
Wrote packet of 184 bytes.
Read 2 potential packets, wrote 2 packets (424 bytes).

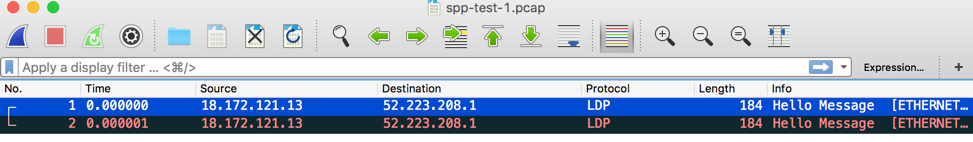

Wireshark

Detail packets, please check attachment: spp-test-1.pcap
